    TECHNICAL DETAILS

    DROP BARFLAT BAR

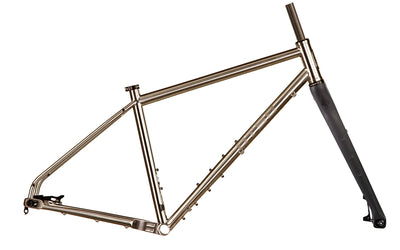

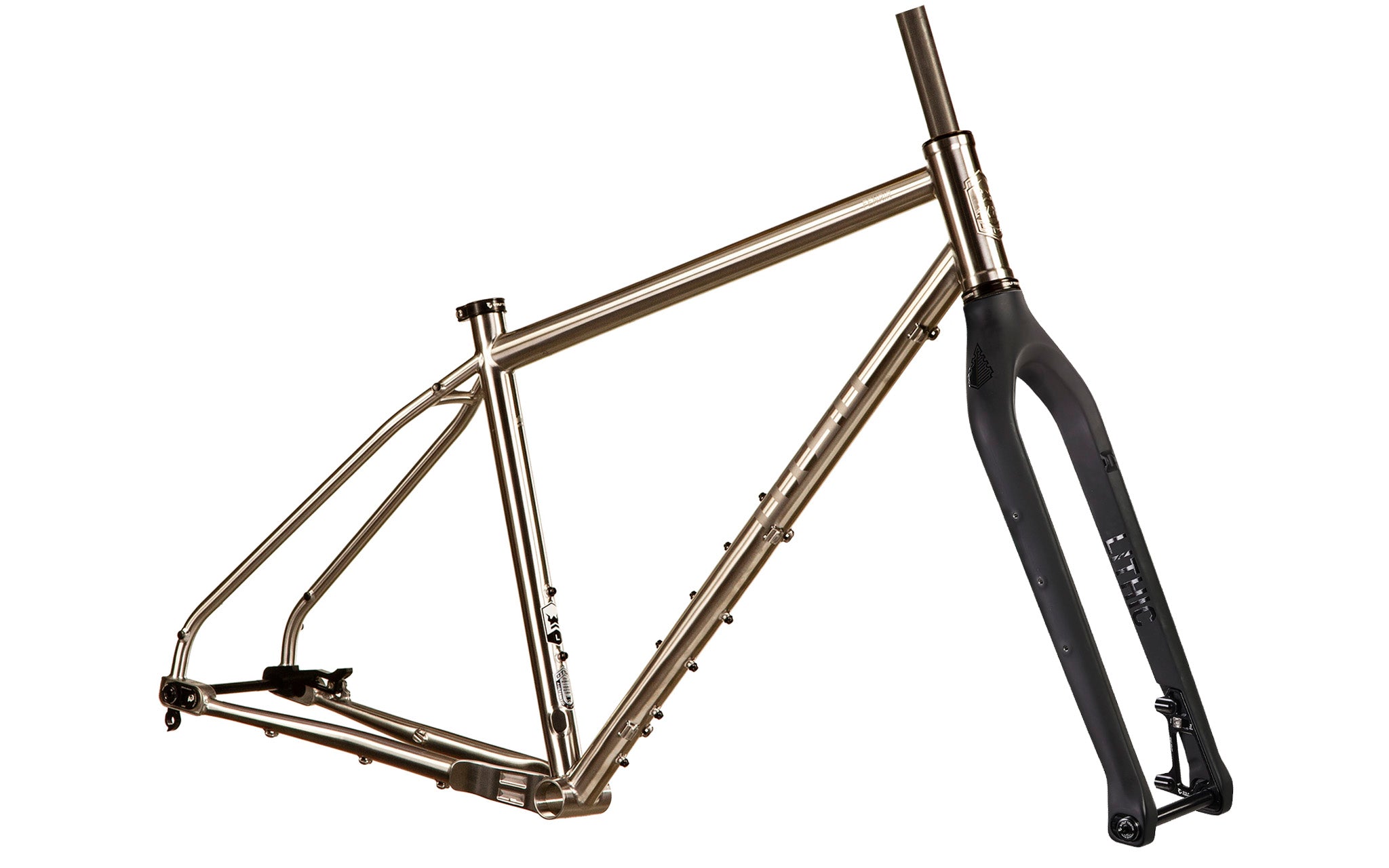

    FrameCustom butted austenitic stainless steel frameCustom butted austenitic stainless steel frame
    ForkCarbon Enve Mountain Fork, 15mm thru axleCarbon Enve Mountain Fork, 15mm thru axle
    HeadsetWolf Tooth Performance HeadsetWolf Tooth Performance Headset
    Rear derailleurShimano GRX 810, 11-speedTRP G-Spec TR12, 12-speed
    Front derailleurN/AN/A
    ShiftersShimano GRX 600, 11-speedTRP G-Spec TR12, 12-speed
    CassetteShimano SLX, 11-46T, 11-speedSRAM GX, 10-51T, 12-speed
    BrakesShimano GRX 600 hydraulicMagura MT4 hydraulic
    CranksRace Face AeffectRace Face Aeffect
    HandlebarLithic Corundum aluminum compact drop with 16° flareLithic flat bar
    Tape / GripsWolf Tooth Supple Lite Bar TapeWolf Tooth silicone foam grips
    WheelsSun Ringle Duroc 30Sun Ringle Duroc 30
    TiresMaxxis Aspen 29" x 2.4"Maxxis Aspen 29" x 2.4"
    Frame SizesXS, S, M, L, XLXS, S, M, L, XL
    Bottom bracket standardShimano english thread BSA, Ø73mm
    Maximum chainring size1x: 40T round or 38T oval
    Front derailleur typeN/A
    HeadsetZS44/28.6 upper, EC44/40.0 lower
    Seatpost diameterØ31.6mm
    Internal dropper post routingYes. Exit port on bottom of seat tube
    Seatpost clampØ34.9mm
    Front/rear hub standard110x15mm thru axle / 148x12mm thru axle
    Front/rear axleØ15x100mm front, TP=1.5, TL=15mm / Ø12x187mm rear, TP=1.5, TL=12mm
    Derailleur hangerWolf Tooth Tuning Chip Right Dropout
    Rear brake (rotor)Flat mount, 74mm post mount available(160mm)
    Front brake (rotor)Post mount native,(160mm post mount or 180mm flat mount)
    Fork axle-to-crown490mm (suspension corrected for 100mm suspension fork)
    Fork offset44mm or 52mm
    Bare frame weight (L)5.7lbs (2580g)
    Fork weight (Enve rigid fork)676g
    Tire clearance (frame)2.3" at 420mm chainstay position, 2.6" at 430/440mm chainstay position
    Tire clearance (fork)Max clearance 29x3.0"
    Braze-ons3 bottle mounts, fender, rack, cable clamps

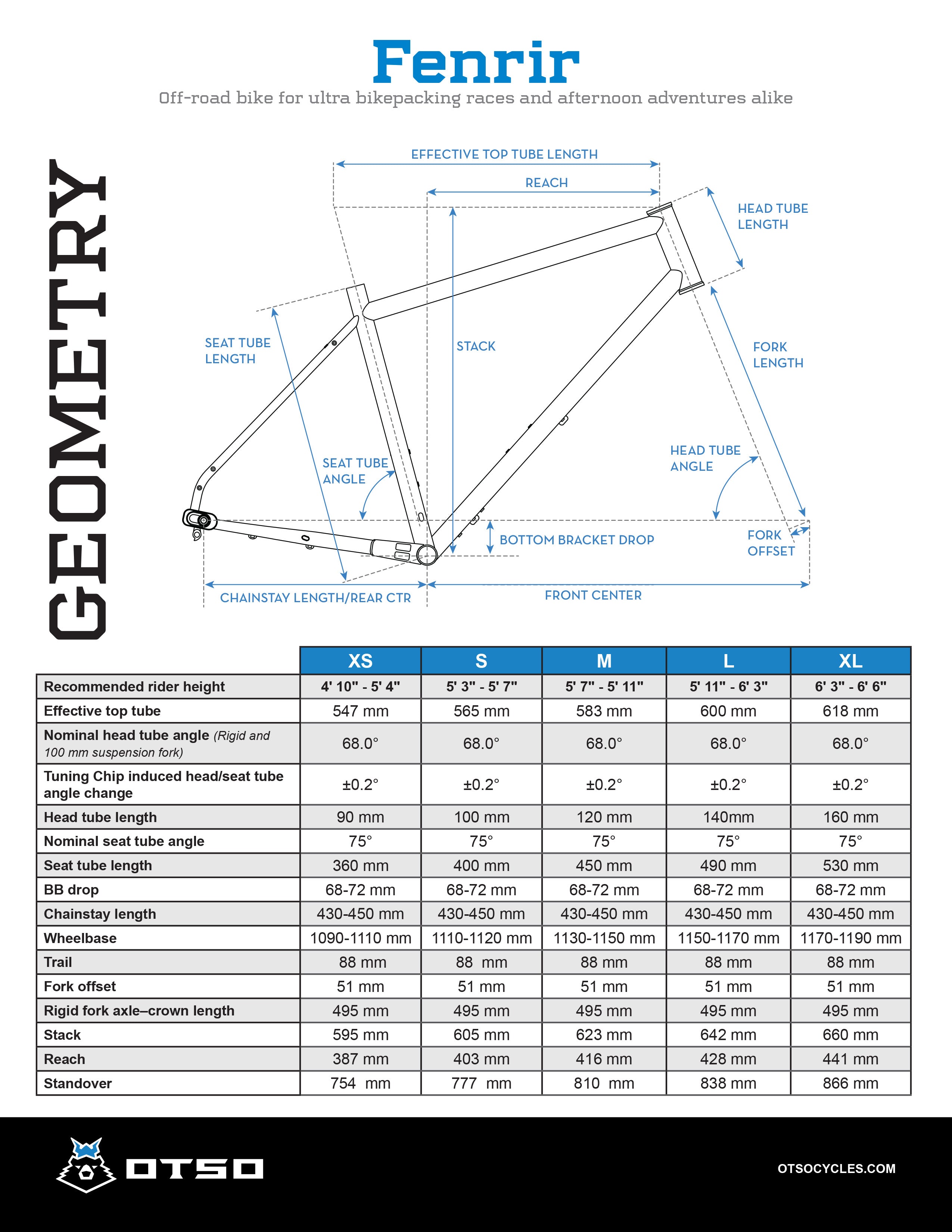

    Frame Bag Dimensions X-Small Small Medium Large X-Large
    XSSMLXL
    Recommended rider height4'10"-5'4"5'2"-5'7"5'6"-5'11"5'10"-6'3"6'2"-6'6"
    Effective top tube547mm565mm583mm600mm618m
    Nominal head tube angle68°68°68°68°68°
    Tuning Chip induced head/seat tube angle change±0.2°±0.2°±0.2°±0.2°±0.2°
    Head tube length90mm100mm120m140mm160mm
    Nominal seat tube angle75°75°75°75°75°
    Seat tube length360mm400mm450mm490mm530mm
    Bottom bracket drop68-72mm68-72mm68-72mm68-72mm68-72mm
    Chainstay length430-450mm430-450mm430-450mm430-450mm430-450mm
    Wheelbase1090-1110mm1110-1120mm1130-1150mm1150-1170mm1170-1190mm
    Trail88mm88mm88mm88mm88mm
    Fork offset51mm51mm51mm51mm51mm
    Rigid fork axle to crown length495mm495mm495mm495mm495mm
    Stack595mm605mm623mm642mm660mm
    Reach387mm403mm416mm428mm441mm
    Standover754mm777mm810mm838mm866mm
