Hoot Ti Frame
$ 3,300.00
Hurry, only 3 items left in stock!
Pairs well with
Hoot Ti Frame
$ 3,300.00
Technical Details
Build Specs
| SRAM GX Eagle AXS Transmission | Custom Bike Configurator | |

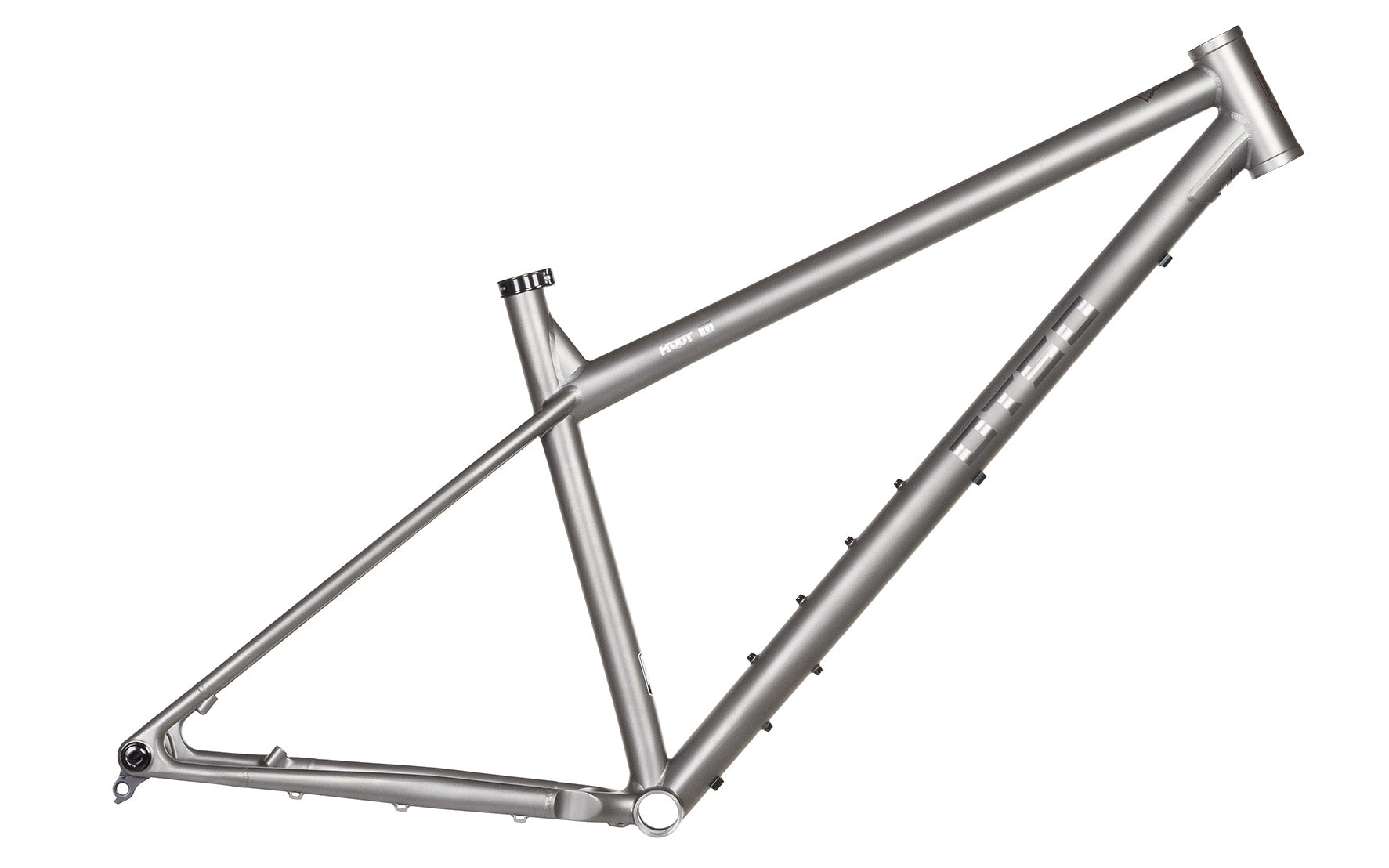

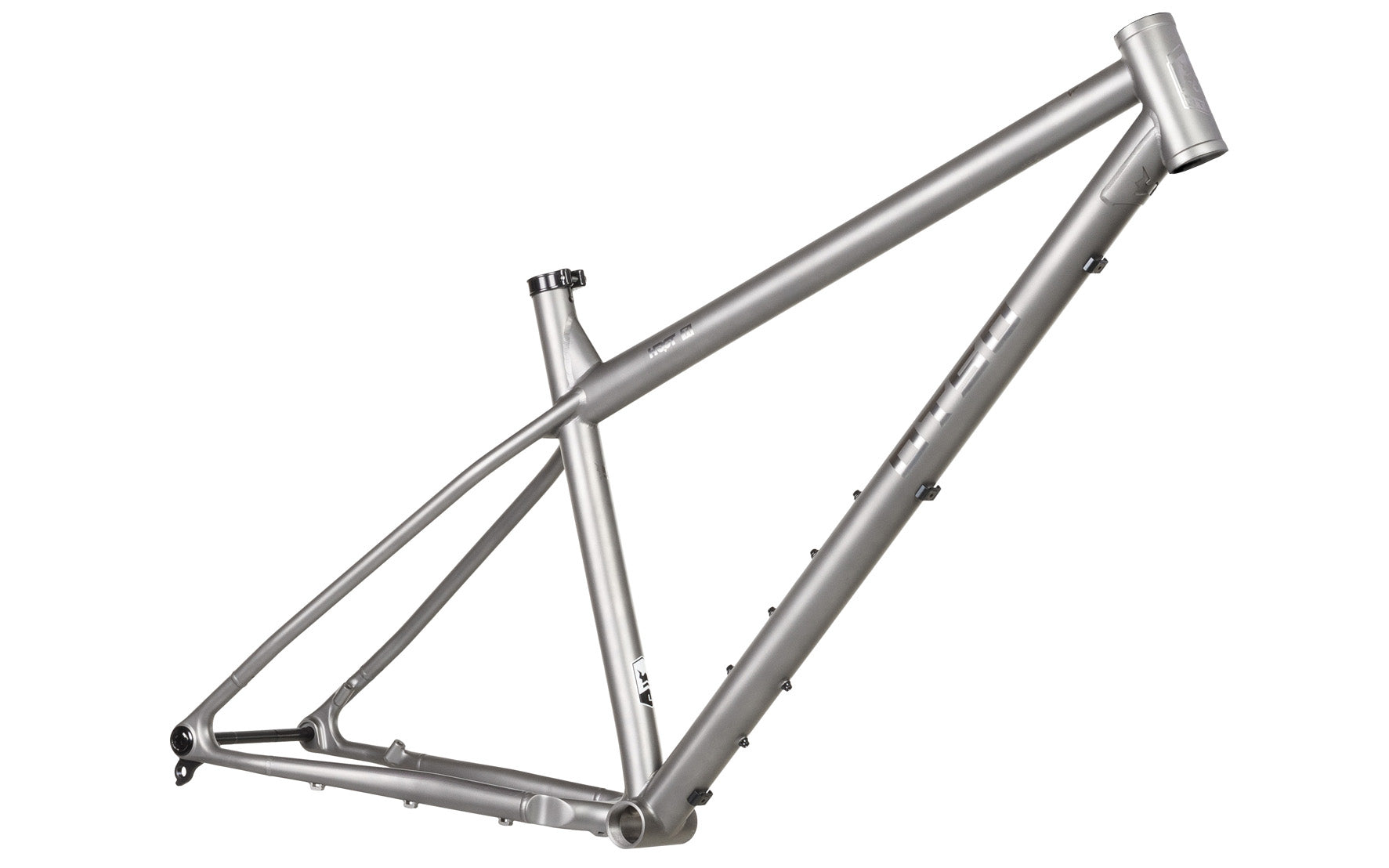

| Frame | 3Al-2.5V titanium with 3D printed titanium stays and dropouts | 3Al-2.5V titanium with 3D printed titanium stays and dropouts |

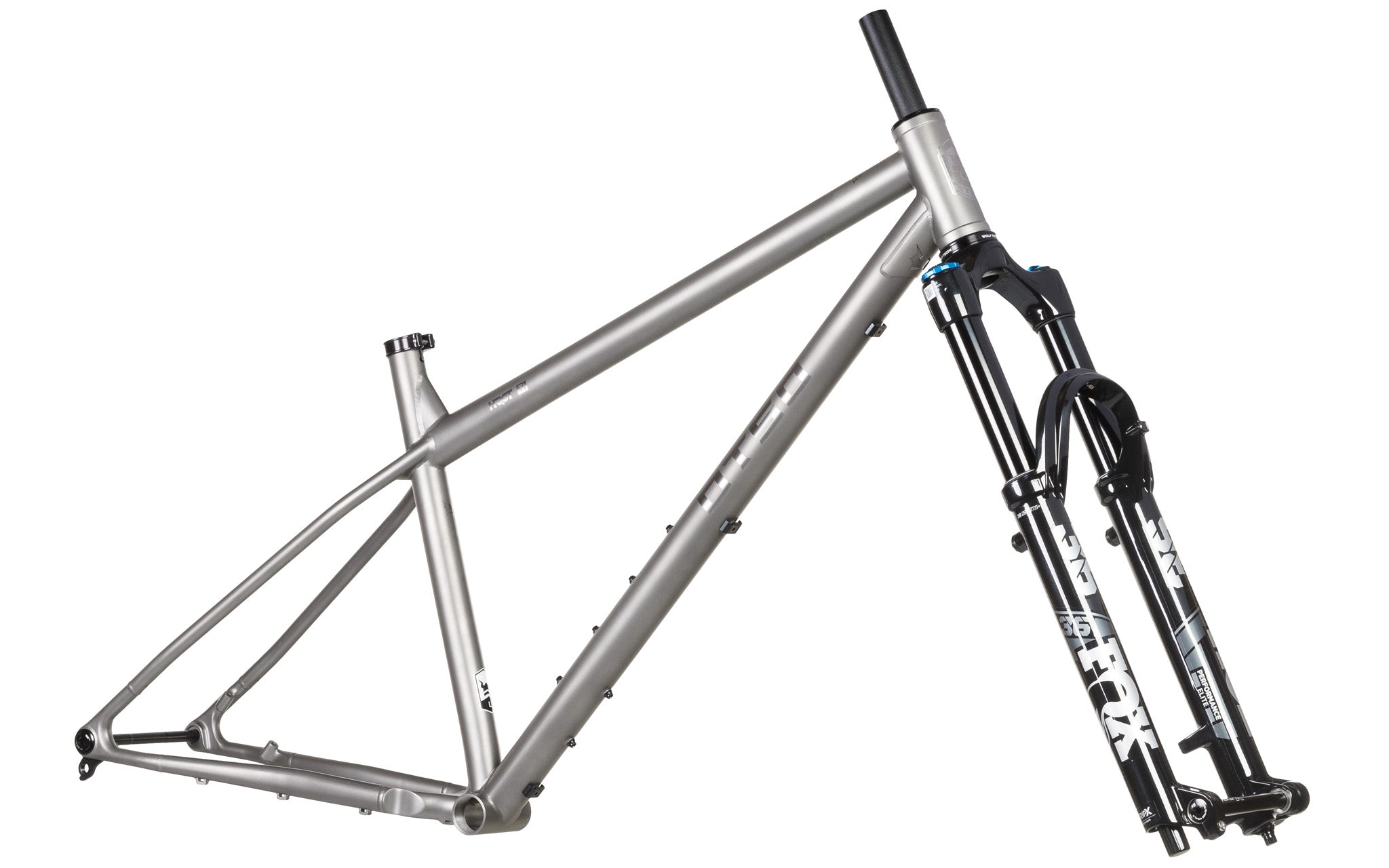

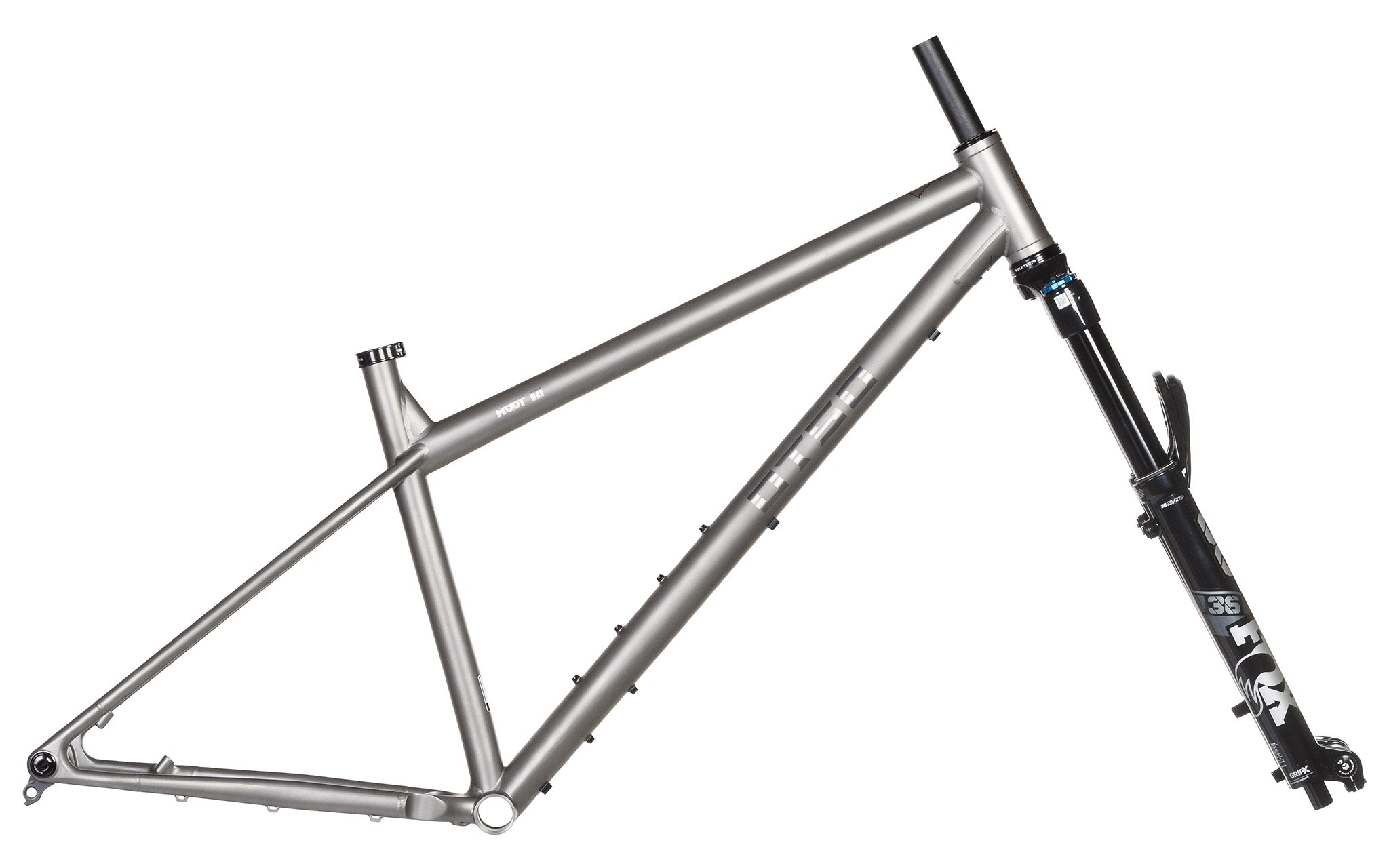

| Fork | Fox 36 Performance Elite Grip X2 140mm travel 44mm offset, custom spec for Hoot Ti | Fox 36 Performance Elite Grip X2 140mm travel 44mm offset, custom spec for Hoot Ti |
| Headset | Wolf Tooth Performance headset, black | Wolf Tooth, Custom Options |
| Rear derailleur | SRAM GX Eagle AXS Transmission T-Type | Custom Options |
| Shifter | GX Eagle AXS Controller | Custom Options |
| Cassette | SRAM XS 1275 T-Type, 10-52T | Custom Options |
| Brakes | Shimano Deore XT Hydraulic Disc Brake, 4-Piston Caliper | Custom Options |
| Cranks | SRAM GX Eagle 170mm | Custom Options |
| Handlebar | Enve M7 Bar 35mm x 800mm, 25mm Rise | Enve M7 Bar 35mm x 800mm, 25mm Rise |
| Grips | Wolf Tooth Echo, black | Wolf Tooth, Custom Options |
| Stem | Race Face Turbine R, 35mm clamp, 40mm length | Race Face Turbine R, 35mm clamp, 40mm length |
| Seatpost | Wolf Tooth Resolve Dropper Post with ReMote Pro Dropper Lever: 125mm S | 160mm M | 200mm L | 200mm XL | Wolf Tooth Resolve Dropper Post with ReMote Pro Dropper Lever, Custom Travel Options |
| Seatpost clamp | Wolf Tooth 34.9mm, black | Wolf Tooth 34.9mm, Custom Options |
| Saddle | WTB Silverado | WTB Silverado |
| Wheels | DT Swiss M1900 | Custom Options |
| Tires | Schwalbe Wicked Will Super Ground, 29x2.4, Black | Schwalbe Wicked Will Super Ground, 29x2.4, Black |
| Chain | SRAM GX Eagle T-Type 126 | Custom Options |
| Frame Sizes | S, M, L, XL | S, M, L, XL |
| Weight (size M) | 27 lbs 0 oz | Varies |
Frame Specs

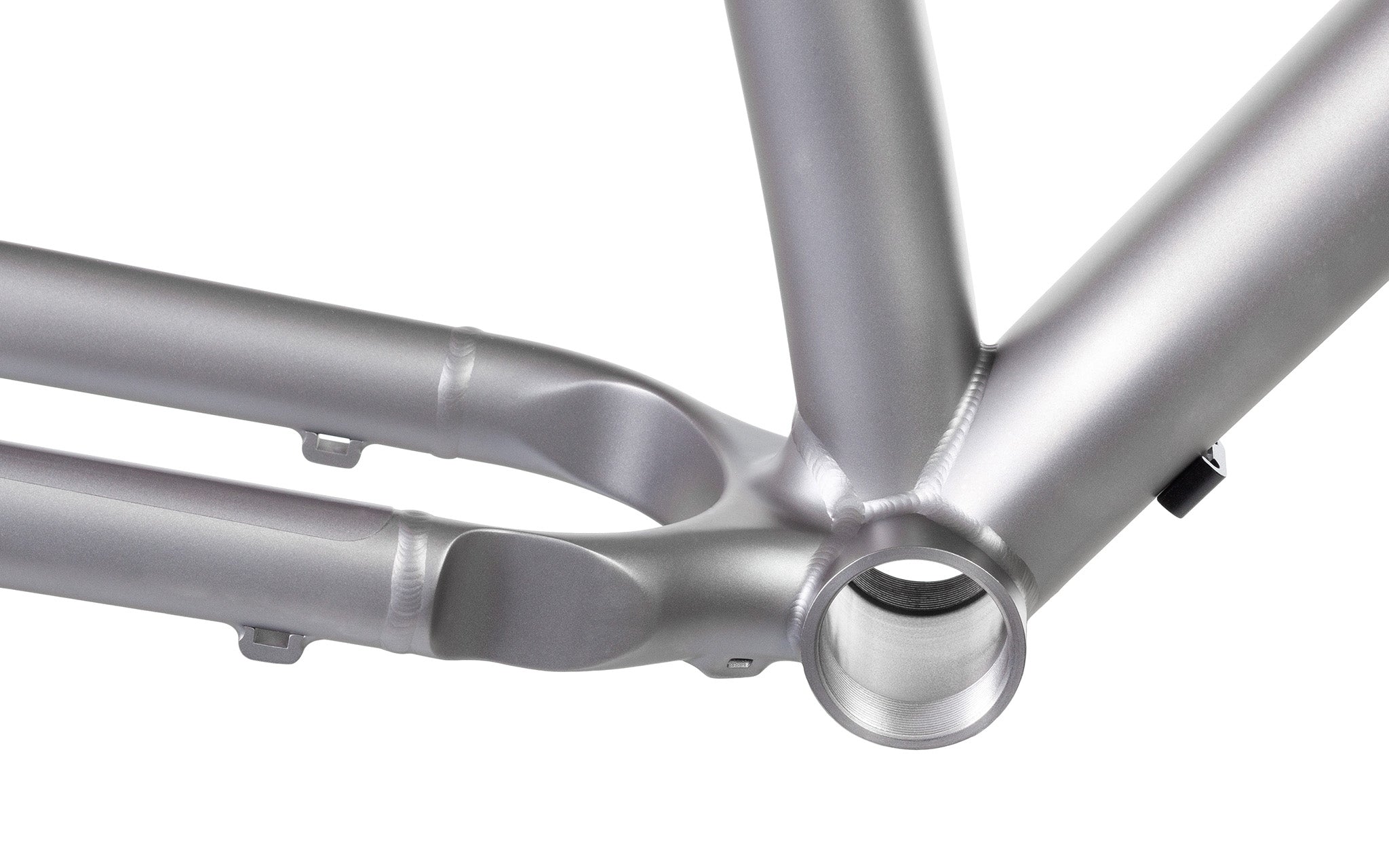

| Bottom bracket standard | BSA, 73mm |
| Maximum chainring size | 1x: 36T round or 34T oval |
| Front derailleur type | N/A |

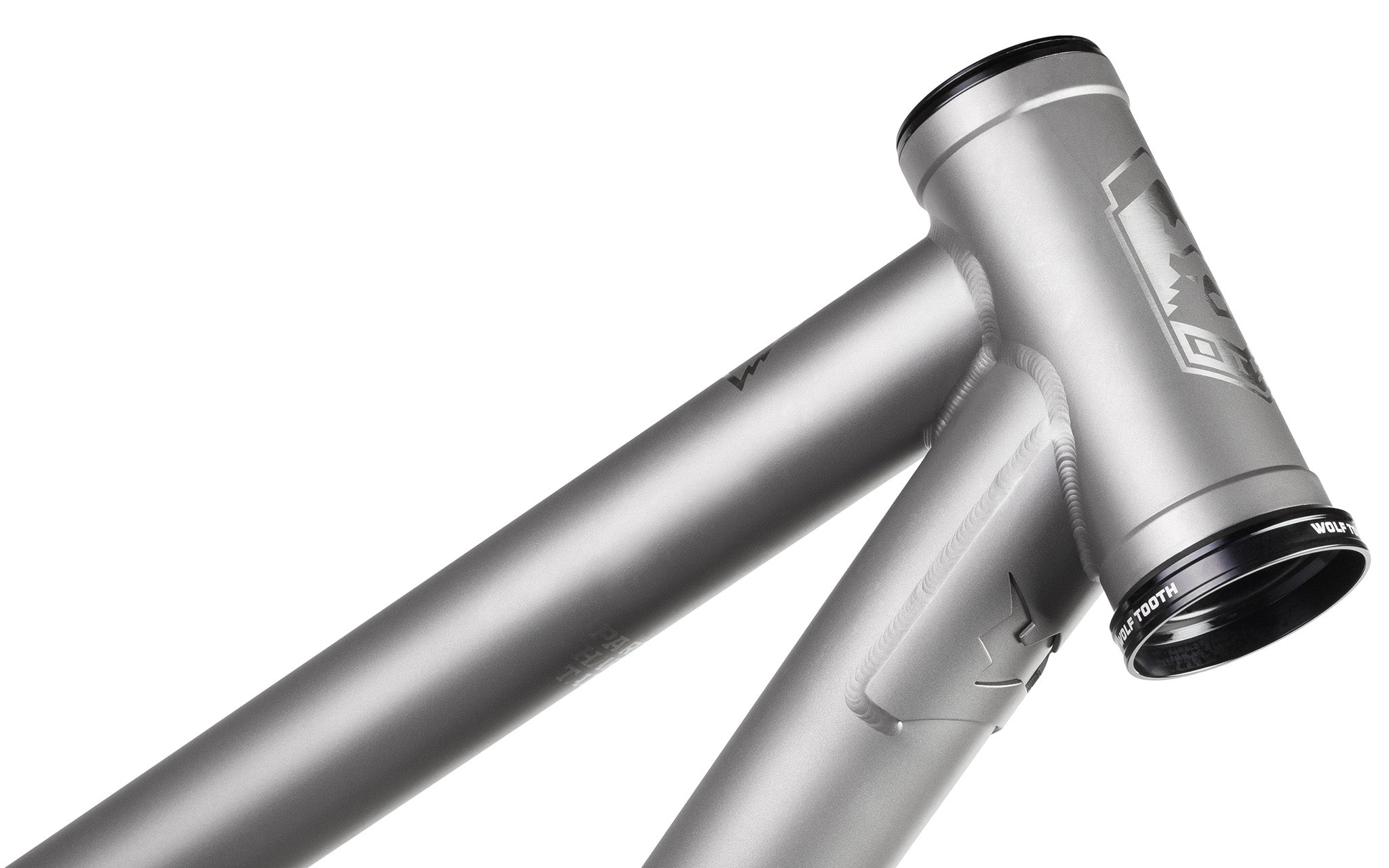

| Headset | ZS44/28.6 upper, EC44/40.0 lower |
| Seatpost diameter | Ø31.6mm |
| Internal dropper post routing | Yes, port below bottom bracket |
| Seatpost clamp | Ø34.9mm |
| Front/rear hub standard | 110x15mm thru axle / 148x12mm thru axle |
| Front/rear axle | Ø15x110mm front, TP=1.5, TL=15mm / Ø12x173mm rear, TP=1.0, TL=16.5mm |
| Derailleur hanger | UDH (Universal Derailleur Hanger) |
| Rear brake (rotor) | Post mount, 180mm native |
| Front brake (rotor) | Fork dependant |
| Fork travel | 140mm |
| Fork offset | 44mm |
| Bare frame weight (L) | 1798g / 3.9lbs |
| Tire clearance (frame) | 29x2.6" |
| Braze-ons | Three bottle frame mounts, bolt on cable guides |
| Frame bag dimensions | Download PDF |
| Seatpost insertion depth | Small 296mm; Medium 336mm; Large 376mm; XL 416mm |
| Max weight (rider + gear) | 275 lbs |

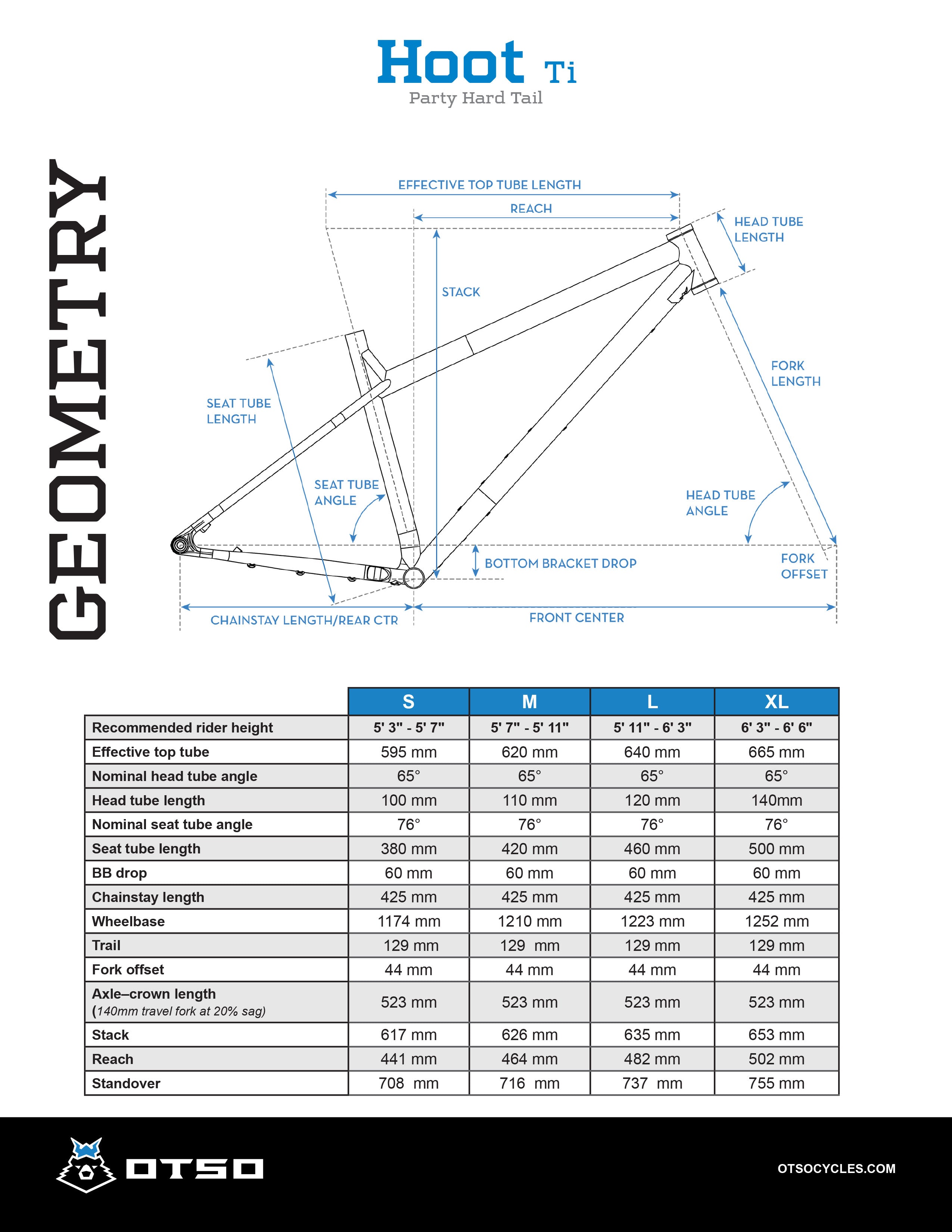

Geometry
| Small | Medium | Large | X-Large | |
| Recommended rider height | 5'3"-5'7" | 5'7"-5'11" | 5'11"-6'3" | 6'3"-6'6" |
| Standover | 708mm | 716mm | 737mm | 755mm |
| Stack | 617mm | 626mm | 635mm | 653mm |
| Reach | 441mm | 464mm | 482mm | 502mm |
| Effective top tube | 595mm | 620mm | 640mm | 665mm |
| Head tube angle (140mm suspension fork) | 65° | 65° | 65° | 65° |
| Head tube length | 100mm | 110mm | 120mm | 140mm |
| Seat tube angle | 76° | 76° | 76° | 76° |
| Seat tube length | 380mm | 420mm | 460mm | 500mm |
| Seatpost insertion depth | 296mm | 336mm | 376mm | 416mm |
| Bottom bracket drop | 60mm | 60mm | 60mm | 60mm |
| Chainstay length | 429mm | 429mm | 429mm | 429mm |
| Rear center | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1174mm | 1201mm | 1223mm | 1252mm |
| Trail | 129mm | 129mm | 129mm | 129mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| 140mm suspension fork axle to crown length | 523mm | 523mm | 523mm | 523mm |
