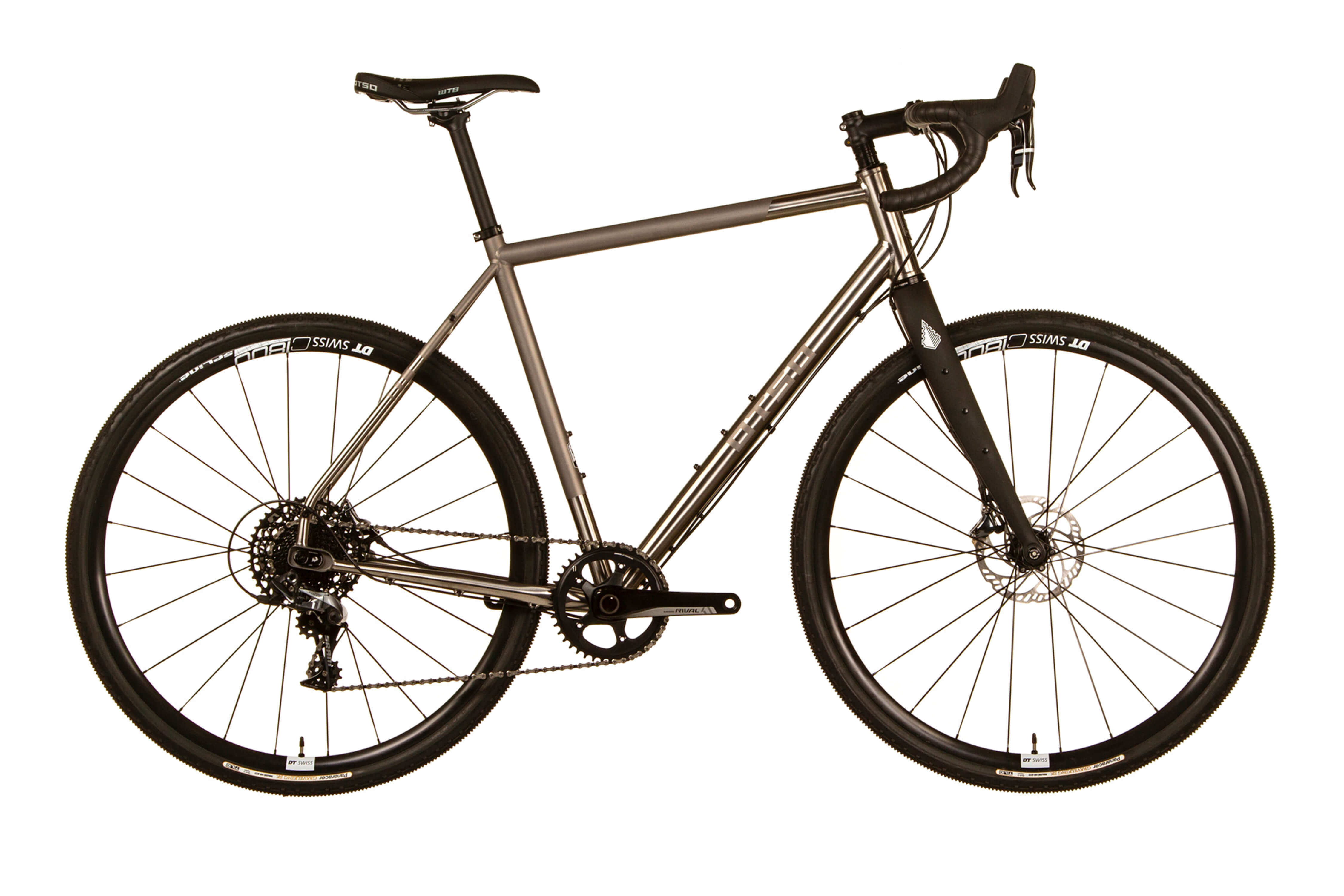

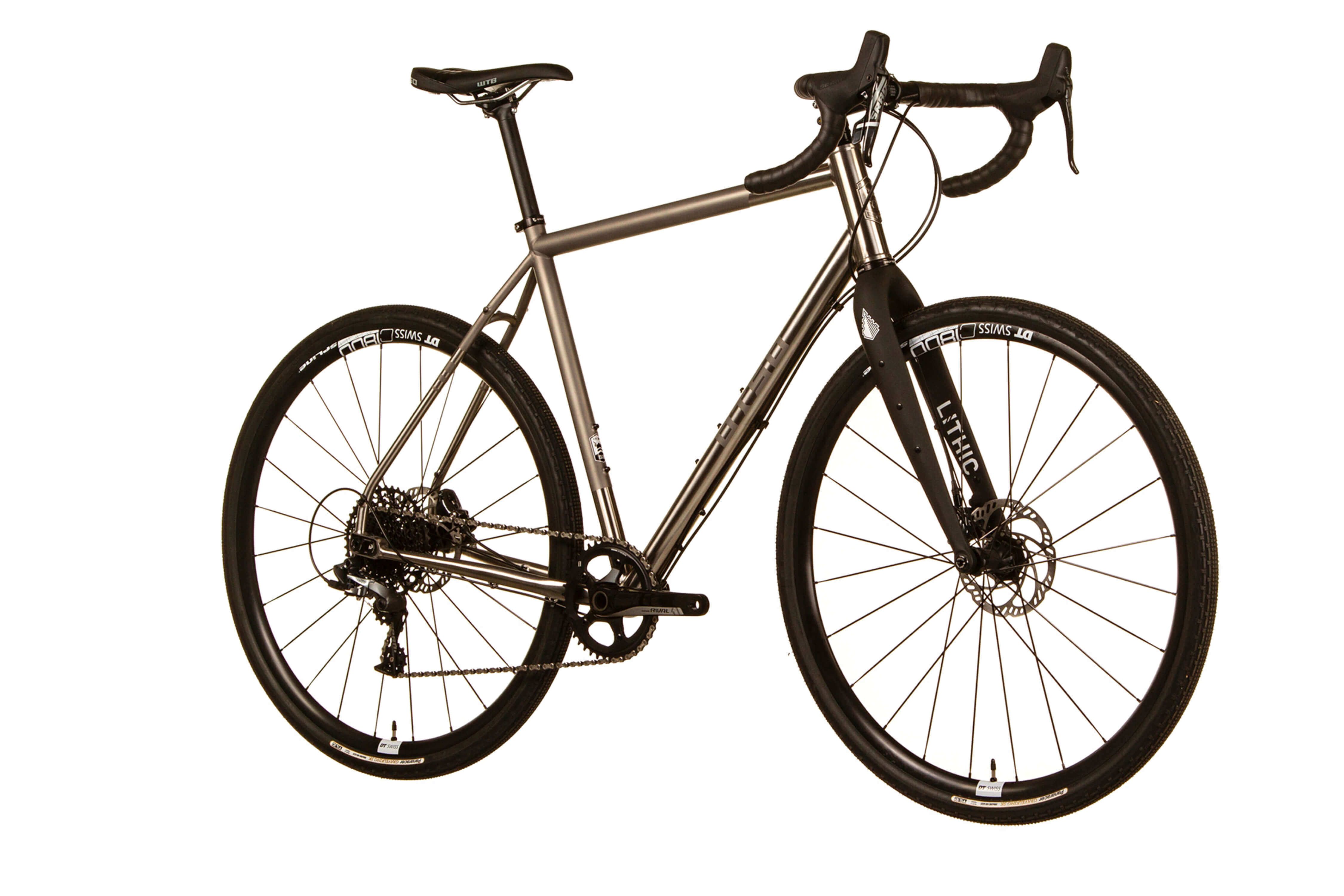

The Warakin Ti is an efficient, responsive, sprightly titanium bike that can handle any road in any weather. Using the progressive geometry of its Warakin Stainless predecessor, the Warakin Ti pairs unrivaled ride quality with the superior quality of titanium. It's a lightweight, durable, lively machine that will carry the rider to where they choose to go, while enjoying every pedal stroke along the way.
Warakin Ti Bikes
Any Road. Any weather.
FREE SECOND WHEELSET
With purchase of select Bikes*
Use coupon code FREEWHEELS
*Promotion only valid on Waheela C, Warakin, and Fenrir complete bikes for either one set of SUNringle G30 Expert gravel wheels or SUNringle Duroc 30 Comp 29" boost wheels. Does not include any extra tires, cassettes, or rotors. Valid now thru 6/1/2023 or while supplies last.
Note: Images may not show actual build kit content. Pricing and specifications subject to change without notice. Comparable components may be substituted when necessary to fulfill bike shipments.
Our bikes are available for purchase here on our website and with our growing network of bike shops. If you’d like to work with your local Otso dealer to build a bike, click the Find A Dealer button to find an Otso bike shop near you.
SUPERIOR TITANIUM
The 3Al/2.5V B338 grade 9 titanium that we use for the Warakin Ti is the same titanium that has been a bicycle industry favorite for decades, and with good reason. Equal parts science and magic, titanium is durable, lightweight, lively, corrosion resistant, and timeless. The tubing is seamless, butted, clean, and strong. It's because of the superior quality of titanium that we chose this material to lend to our heralded Warakin geometry as a bike that will endure the roughest roads in the harshest conditions and tell the stories for decades to come.
EXTRA TIRE CLEARANCE
If a bike is meant to ride any road in any condition, it needs to fit tires and wheels that will get you to and from your destination, while handling every bump along the way. The massive tire clearance of the Warakin Ti was built with this in mind. It'll fit 29" x 2.1" for that road that doesn't actually appear on the map, just as easily as 650b x 50mm for windy forest trails, or 700c x 35mm (or 700c x 50mm if you want a little extra) for your next gravel race. Because a frame that can last forever needs to have the ability to adapt to whatever the road (and the future) may bring.
VERSATILITY

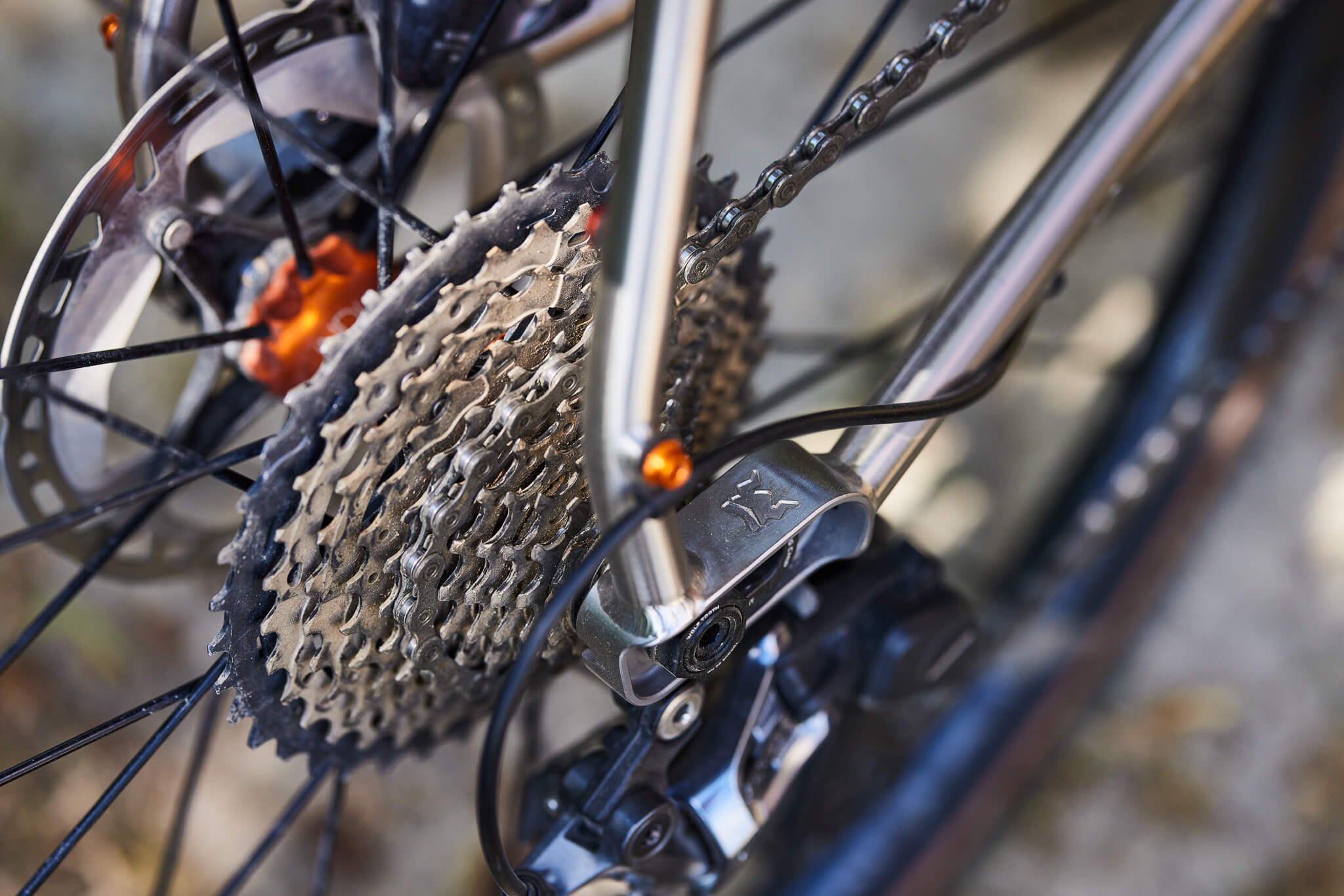

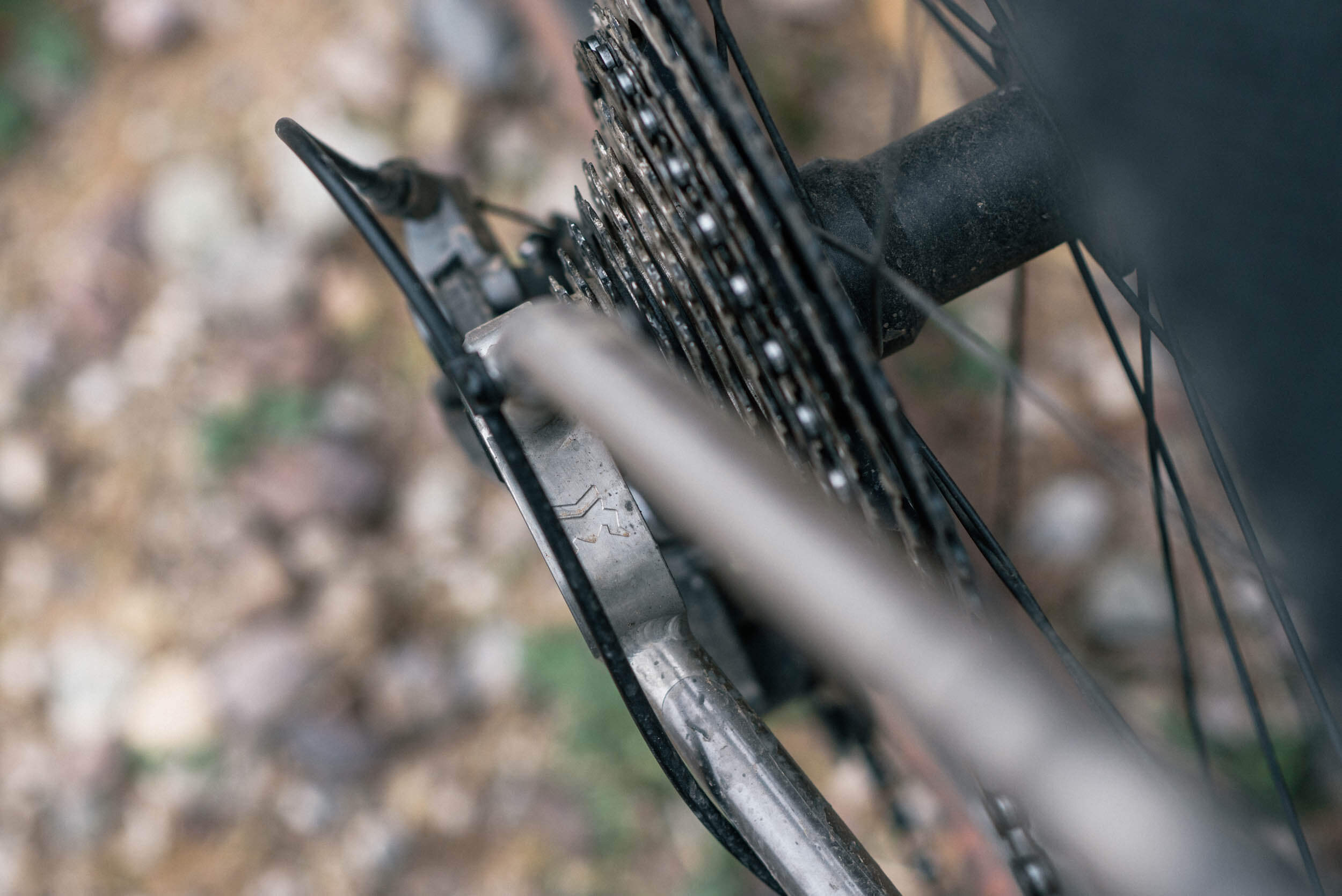

Like all Otso bikes, the Warakin Ti sports our patented Tuning Chip rear dropout system, which allows the rider to lengthen or shorten the wheelbase by up to 20mm and raise or lower the bottom bracket by up to 4mm. For chunky gravel on remote roads, the longer wheelbase of the rear position is set for stability and comfort. For a quick spin around town or the CX course, the front position makes for snappy handling and agile control. The middle position? That's the best of both worlds. The Tuning Chip rear dropout system was designed because the bike should be just as versatile as its rider.
AND MUCH MORE
TOP QUALITY
Designed by the Otso engineering team, Warakin Ti frames are built by top fabricators in Taiwan and come with a five-year limited warranty. All bikes and frames are inspected and assembled at our headquarters in Minneapolis, MN USA.
PROGRESSIVE GEOMETRY
The progressive geometry of the Warakin Ti takes a page from the cross-country MTB playbook. Increased top tube length and a shorter stem maintain stack and reach while providing a lively ‘can-do’ attitude on rougher terrain.
EXTRA MOUNTING OPTIONS

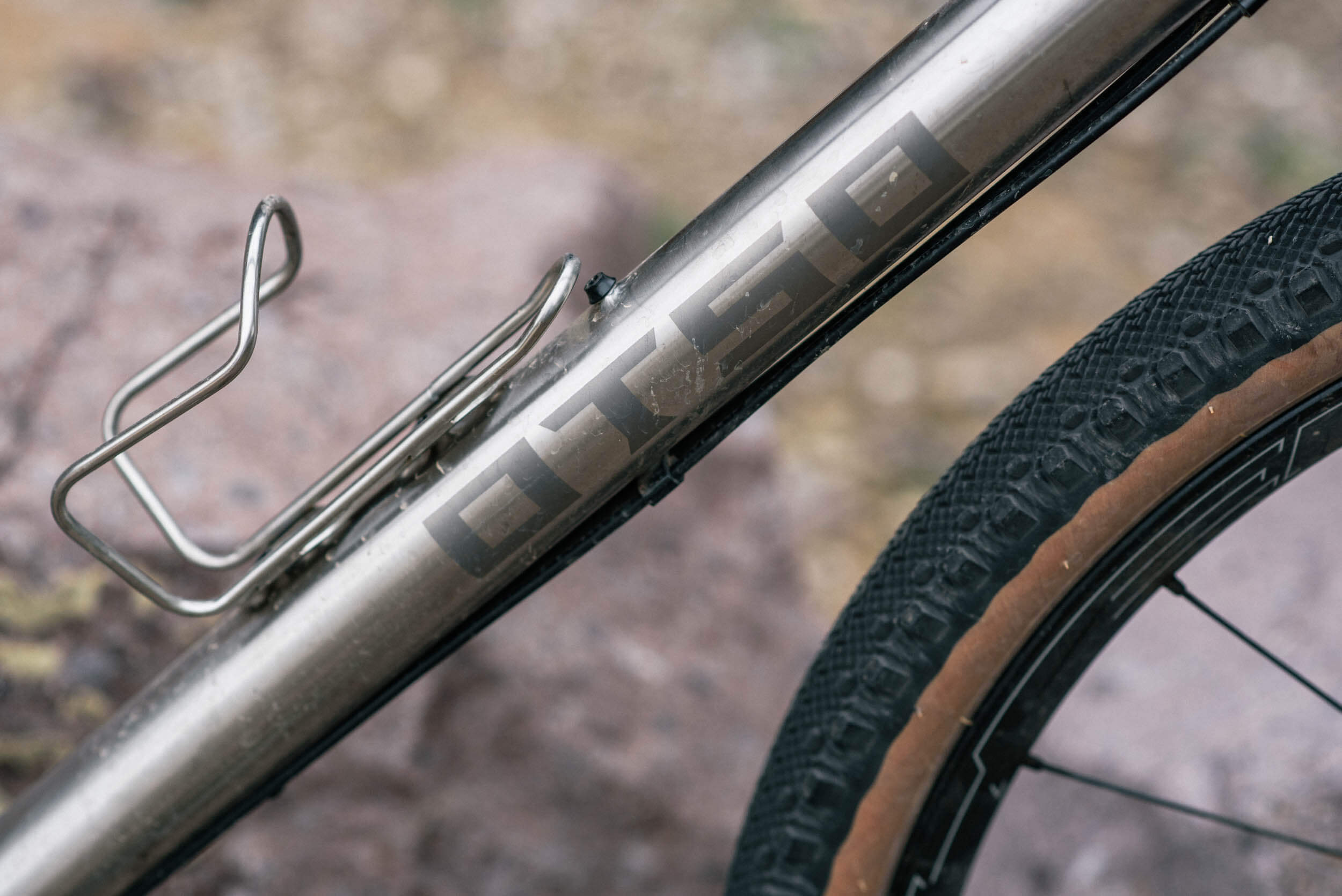

Numerous braze-ons accommodate three bottles, fenders, racks, cable routing clamps, frame bags, and more. Mix in the Wolf Tooth B-RAD System to even further increase on-bike storage options.
SUSPENSION-READY
The geometry of the Warakin Ti includes an axle-to-crown measurement of 420mm, which allows for a shorter suspension fork. A few options are listed in our Custom Bike Builder.
TECHNICAL DETAILS
-
Base Build
-
Frame Specs
-
Geometry
-
Tires & Rims
-
Fenders & Racks

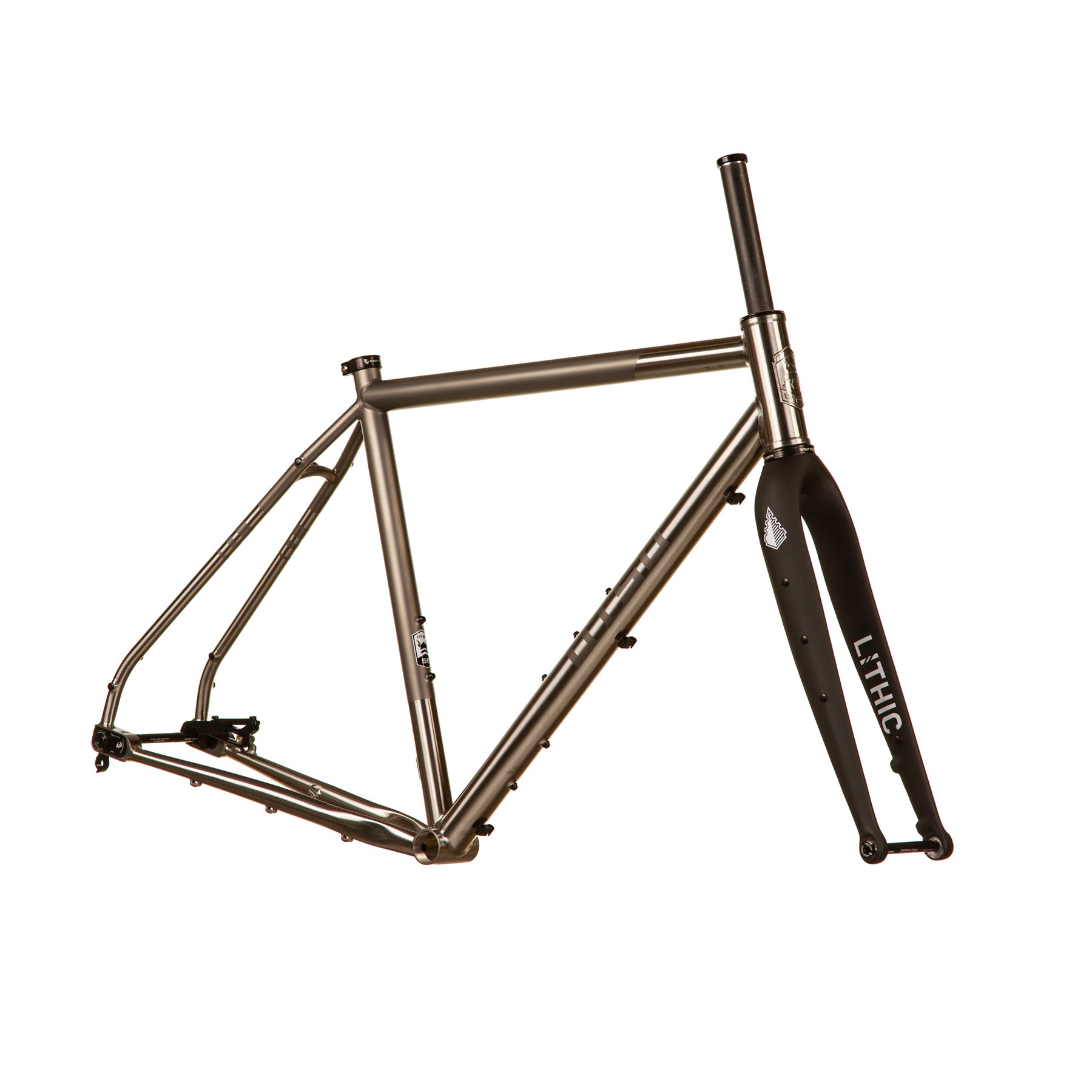

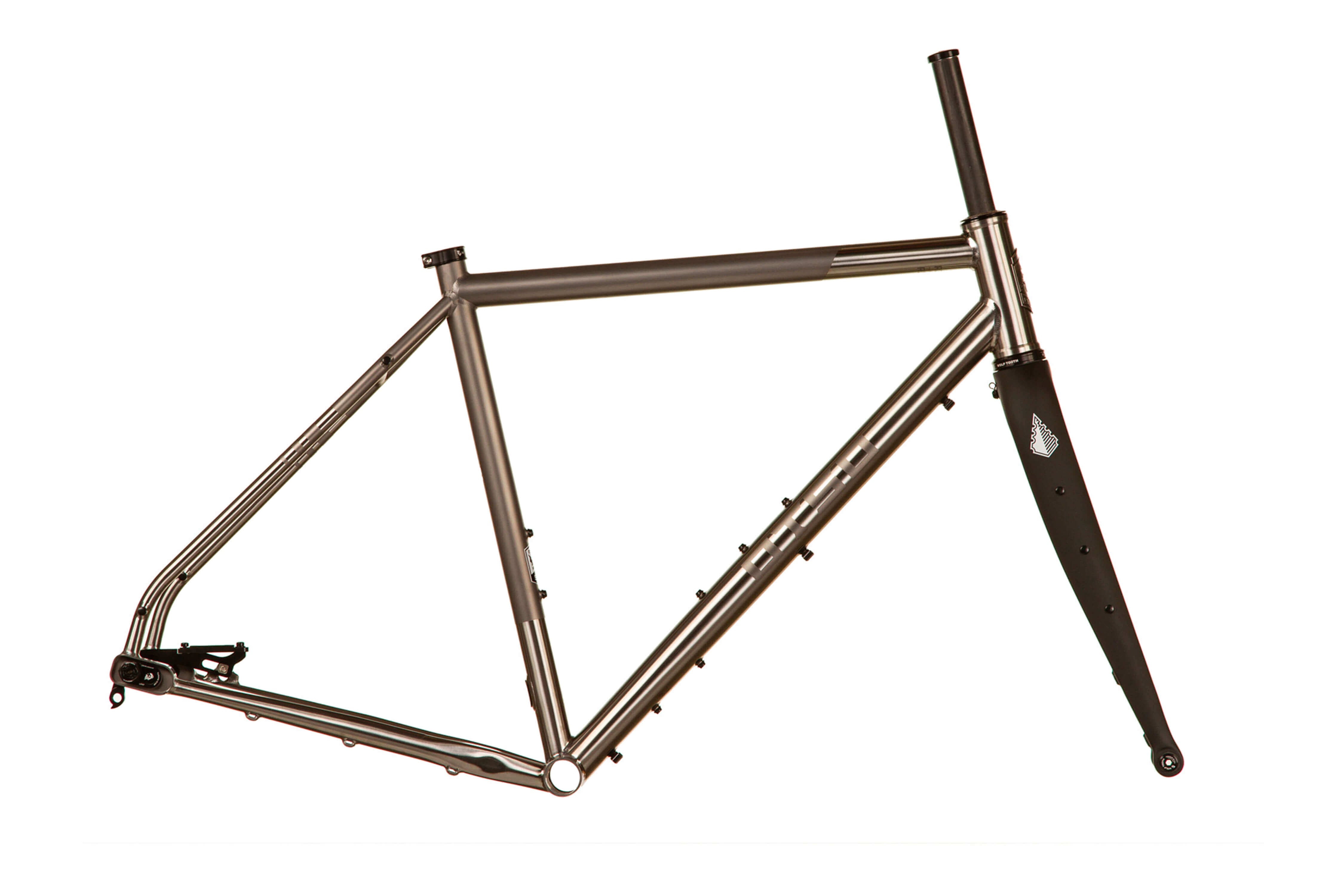

Frame | Warakin 3Al-2.5V B338 grade 9 titanium frame with internally butted front triangle |
Fork | Lithic full carbon fork, 12mm through-axle |

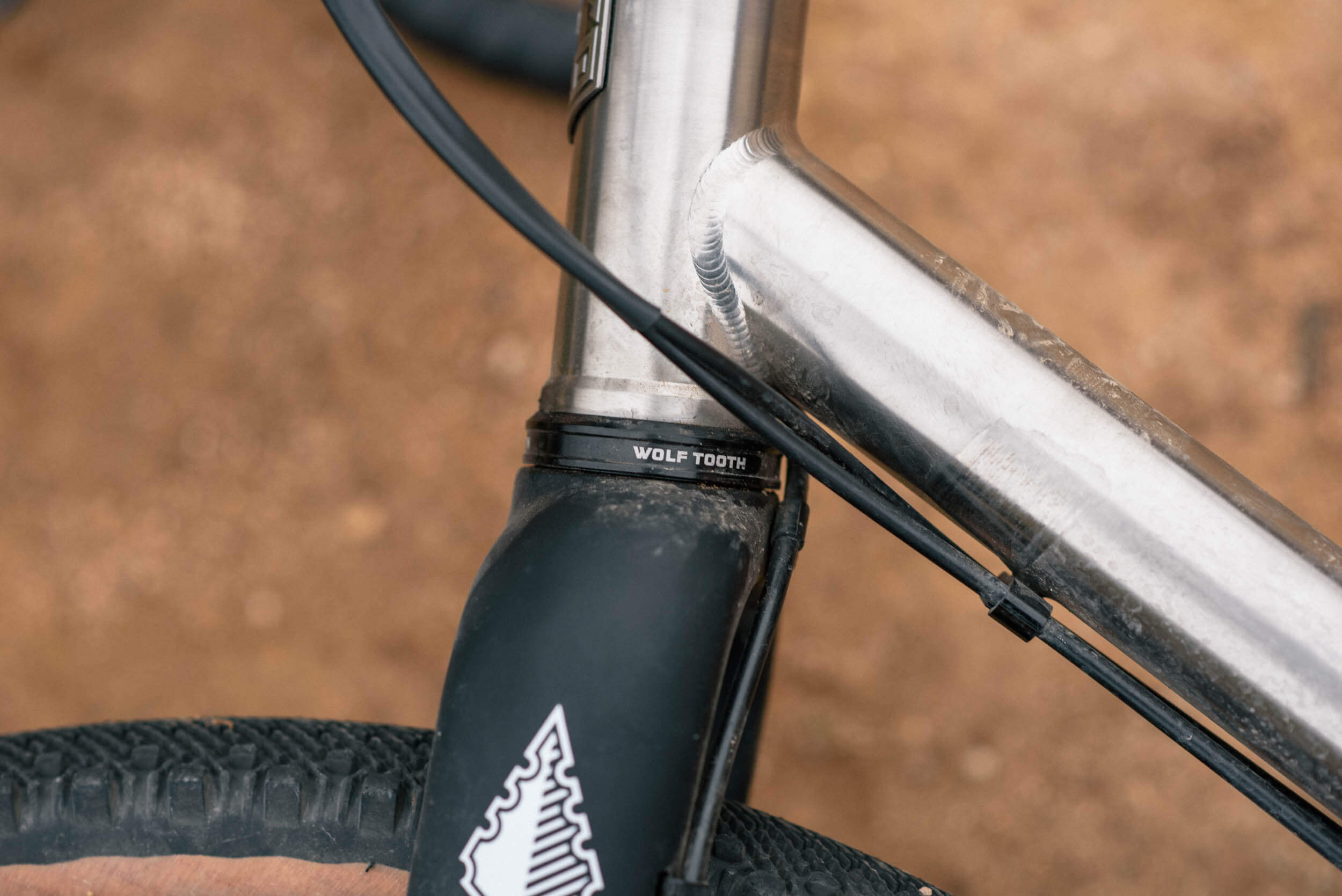

Headset | Wolf Tooth Precision Headset |
Rear derailleur | Shimano GRX 810, 11 speed |
Front derailleur | Shimano GRX, 31.8mm clamp |
Shifters | Shimano GRX mechanical, 11 speed |
Cassette | Shimano HG700, 11-34t, 11 speed |
Brakes | Shimano GRX 600 hydraulic |
Cranks | Shimano GRX 600, 46/30t: 170mm for 49, 52; 172.5mm for 54, 56; 175mm for 58, 60 |
Bottom bracket | Shimano english thread BSA, Ø68mm |
Handlebar | Lithic Corundum aluminum compact drop with 16° flare |
Bar Tape | Cork handlebar tape, black |
Stem | 6061 aluminum |
Seatpost | 6061 aluminum |

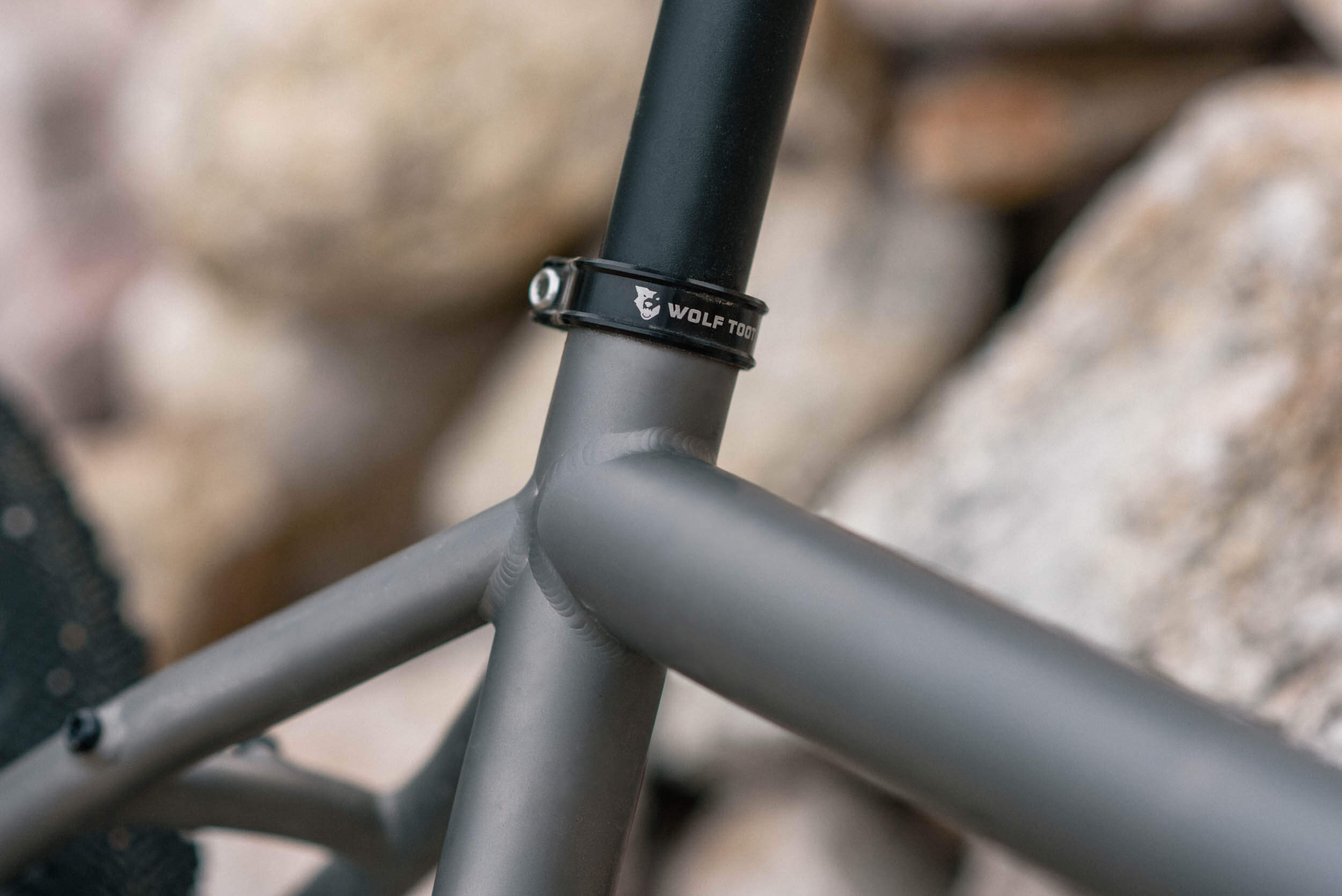

Seatpost Clamp | Wolf Tooth 31.8mm |
Seat | WTB Volt with Otso graphics, 142mm |
Wheels | DT Swiss C 1800 SPLINE, 100x15mm front and 142x12mm rear |
Tires | Panaracer Gravel King SK Tubeless 700x38 |
Chain | Shimano HG-11X |
Frame Sizes | 49cm, 52cm, 54cm, 56cm, 58cm, 60cm |
Frame material | Seamless 3Al-2.5V B338 grade 9 titanium, internally butted front triangle |
Bottom bracket standard | 68mm BSA threaded |
Q-factor | 146mm with Shimano RS510 crankset |
Maximum chainring size | 2x 53T round; 1x 50T round or 46T oval |
Front derailleur type | 31.8mm clamp, bottom pull |
Headset | ZS44/28.6 upper, EC44/40.0 lower |
Seatpost diameter | Ø27.2mm |
Internal dropper post routing | Yes. Exit port on bottom of seat tube |
Seatpost clamp | Ø31.8mm |
Front/rear hub standard | 100x12mm thru axle / 142x12mm thru axle |
Front/rear axle | Ø12x125mm front, TP = 1.5, TL = 15mm / Ø12x180mm rear, TP = 1.5, TL = 12mm |
Derailleur hanger | Wolf Tooth Tuning Chip Right Dropout |
Rear brake (rotor) | flat mount, 74mm post mount adapter available (160mm) |
Front brake (rotor) | flat mount native, 74mm post mount adapter available (160mm) |
Fork axle-to-crown | 420mm |
Fork offset | 47mm |
Bare frame weight (54cm) | 3.4lbs (1542g) |
Fork weight (Lithic Hiili) | 490g |
Tire clearance (frame) | 40mm at 420mm chainstay position, 50mm at 430/440mm chainstay position |
Tire clearance (fork) | Max clearance 29x2.1" (54-622) |
Braze-ons | 3 bottle mounts, fender, rack, cable clamps |
Frame Bag Dimensions | 49cm 52cm 54cm 56cm 58cm 60cm |
49cm | 52cm | 54cm | 56cm | 58cm | 60m | |
---|---|---|---|---|---|---|
Recommended rider height | 5'0"-5'2" | 5'2"-5'4" | 5'4"-5'8" | 5'8"-6'0" | 6'0"-6'2" | 6'2"-6'5" |
Recommended rider inseam | 27"-29" | 28"-30" | 30"-33" | 32"-34" | 33"-35" | 34"-37" |
Effective top tube | 510mm | 530mm | 545mm | 565mm | 580mm | 600mm |
Nominal head tube angle | 70° | 70.5° | 71° | 71.5° | 72° | 72° |
Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
Head tube length | 87mm | 95mm | 115mm | 140mm | 165mm | 185mm |
Nominal seat tube angle | 75° | 74.5° | 74° | 73° | 72.5° | 72° |
Seat tube length | 470mm | 505mm | 530mm | 550mm | 570mm | 590mm |
Bottom bracket drop | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm |
Chainstay length | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm |
Wheelbase | 1010 - 1030mm | 1017-1037mm | 1023-1043mm | 1028-1048mm | 1032-1052mm | 1046-1066mm |
Trail | 72mm | 71mm | 70mm | 67.5mm | 65mm | 65mm |
Fork offset | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm |
Rigid fork axle to crown length | 420mm | 420mm | 420mm | 420mm | 420mm | 420mm |
Stack | 539mm | 549mm | 570mm | 596mm | 622mm | 641mm |
Reach | 370mm | 378mm | 381mm | 383mm | 384mm | 392mm |
Standover | 730mm | 760mm | 780mm | 800mm | 820mm | 840 mm |
Compatible fenders
SKS - Speedrocker (for 23 - 42mm tires)
SKS - S-Board and S-Blade
SKS - Commuter II
PDW - Sodapop
Ass Savers - Mudder Mini front and Fendor Bendor Regular
compatible racks
Axiom - Streamliner 29er DLX Rear Rack (requires Tuning Chip with threaded rack mounts)
Topeak - Uni Super Tourist DX Rear Rack (requires Tuning Chip with threaded rack mounts)
Blackburn - Outpost Rear World Touring Rack (requires Tuning Chip with threaded rack mounts)
Old Man Mountain - Divide Front Rack axle mounted with Fit Kit SET705.R
Old Man Mountain - Divide Rear Rack axle mounted with Fit Kit SET814
Old Man Mountain - Elkhorn Front Rack axle mounted with Fit Kit SET705.R
Old Man Mountain - Elkhorn Rear Rack axle mounted with Fit Kit SET814
Frame Bag Dimensions
(click on links to view PDF drawings)
