Warakin Frameset

$ 1,799.00

Size
Build Level
Quantity

FRAMESETS SHIPPING NOW!

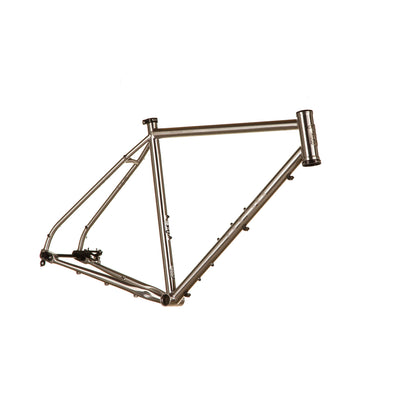

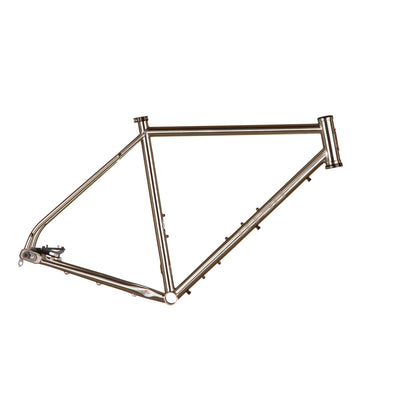

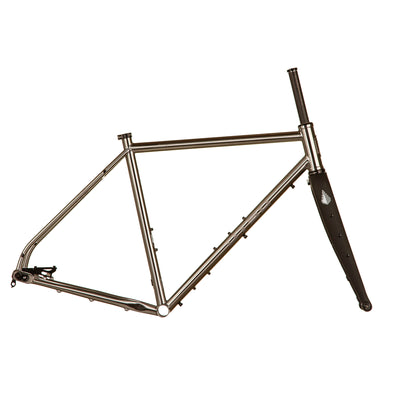

Complete bikes are pictured here but this page is for Warakin frameset only. The frameset includes: frame with Tuning Chip dropout system, carbon flat mount disc fork with post mount adapter, headset, and seatpost collar -- no other components are included with the frameset.

Warakin™ -- A versatile drop-bar bike for any road and any weather







Warakin™ Frameset Add-Ons

We worked very hard to create a build spec to maximize the performance of the bike and provide good value but we also understand the importance of customizing your bike for your specific trails and riding style.  For that reason we have partnered with some of the top companies in the industry to provide a highly curated list of add-ons to build your framset into a bike.  (Click on icons below to view add-on options.)

Add-ons will be shipped in addition to the frameset.

Upgrades AddOns
 Wheelset Options from Industry Nine
 Drivetrain   Wolf Tooth 1x drivetrain
 Tires Options from Schwalbe

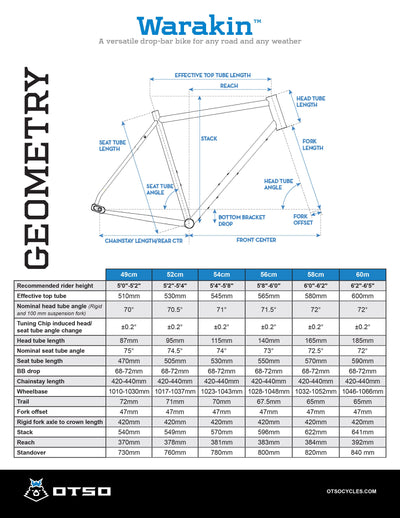

Frame Geometry







Nominal size 49cm 52cm 54cm 56cm 58cm 60cm
Effective top tube 510mm 530mm 545mm 565mm 580mm 600mm
Nominal head tube angle 70° 70.5° 71° 71.5° 72° 72°
Head/seat tube angle change ±0.2° ±0.2° ±0.2° ±0.2° ±0.2° ±0.2°
Head tube length 90mm 115mm 135mm 160mm 185mm 205mm
Seat tube angle 75° 74.5° 74° 73° 72.5° 72°
Seat tube length 470 mm 505 mm 530 mm 550 mm 570 mm 590 mm
BB drop 68-72 mm 68-72 mm 68-72 mm 68-72 mm 68-72 mm 68-72 mm
Chainstay length 420-440 mm 420-440 mm 420-440 mm 420-440 mm 420-440 mm 420-440 mm
Wheelbase 1010-1030 mm 1017-1037 mm 1023-1043 mm 1028-1048 mm 1032-1052 mm 1046-1066 mm
Trail 72 mm 71 mm 70 mm 67.5 mm 65 mm 65 mm
Fork offset 47 mm 47 mm 47 mm 47 mm 47 mm 47 mm
Fork axle to crown length 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm
Stack 524 mm 549mm 570mm 596mm 622mm 641mm
Reach 370 mm 378mm 381mm 383mm 384mm 392mm
Crank arm length 165 mm 170mm 172.5mm 172.5mm 175mm 175mm




Frame Spec



Bottom bracket standard 68 mm BSA threaded
Front/Rear hub standard 100 x 15mm thru axle / 142 x 12mm thru axle
Seat post diameter 27.2 mm
Headset Upper ZS44/28.6, Lower EC44/40.0
Fork axle-to-crown 400 mm
Fork offset 47 mm
Tire clearance (frame) 40 mm @ 420 CS setting, 50mm @ 430/440 mm CS setting
Braze-ons 3 bottle mounts, fender, rack, cable clamps
Frame weight [54] 2120 g
Fork weight 490 g
