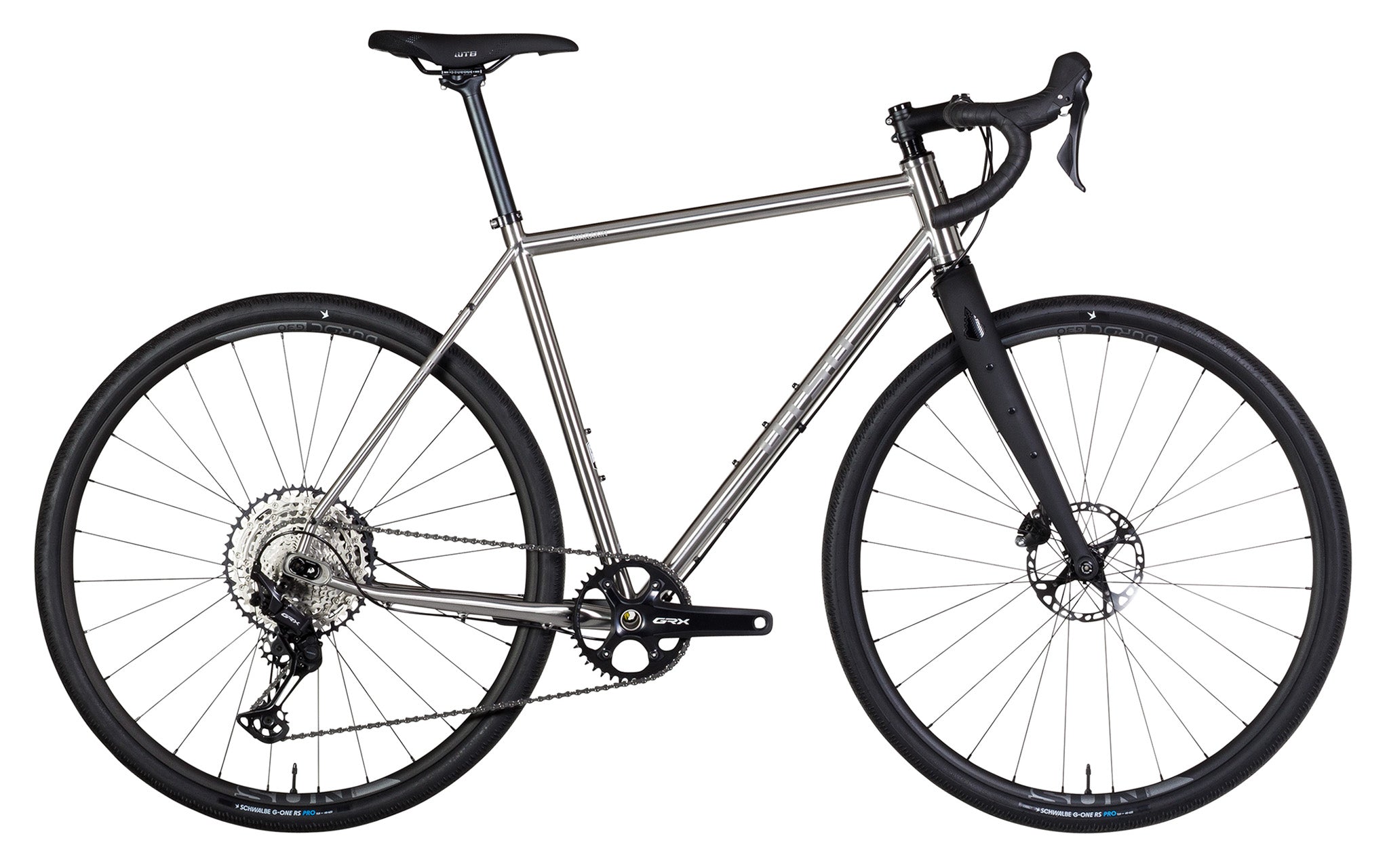

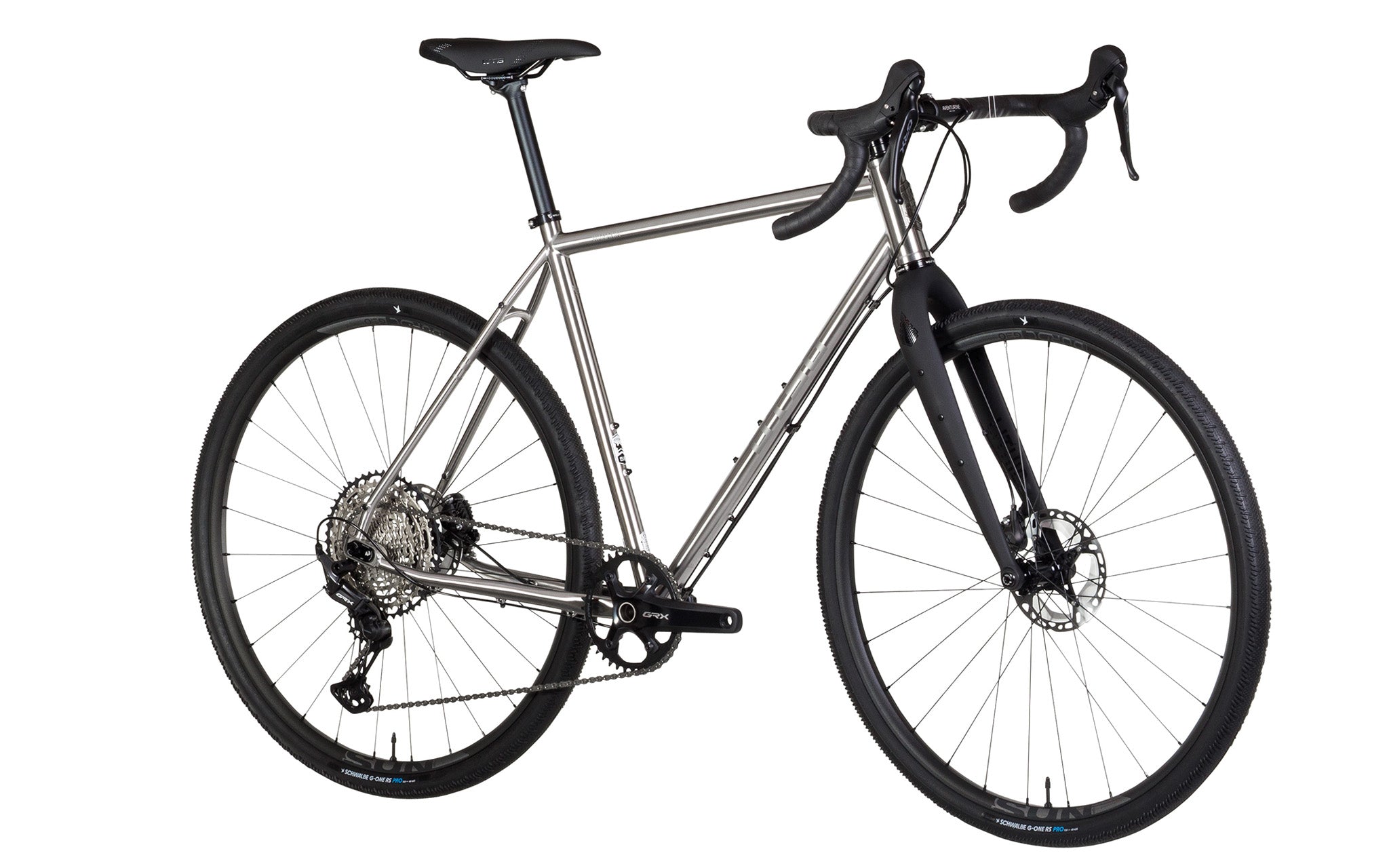

From pavement and cobbles to dirt and gravel, Warakin was designed to go just about anywhere.
FREE SECOND WHEELSET With purchase of select Bikes*
Use coupon code FREEWHEELS
More Info expand_more
*Promotion only valid on Waheela C, Warakin, and Fenrir complete bikes for either one set of SUNringle G30 Expert Wheelset - for Gravel or SUNringle Duroc 30 Comp 29" Boost Wheelset - for Fenrir. Does not include any extra tires, cassettes, or rotors. Valid now thru 6/1/2023 or while supplies last.
ANY SURFACE. EVERY SURFACE!

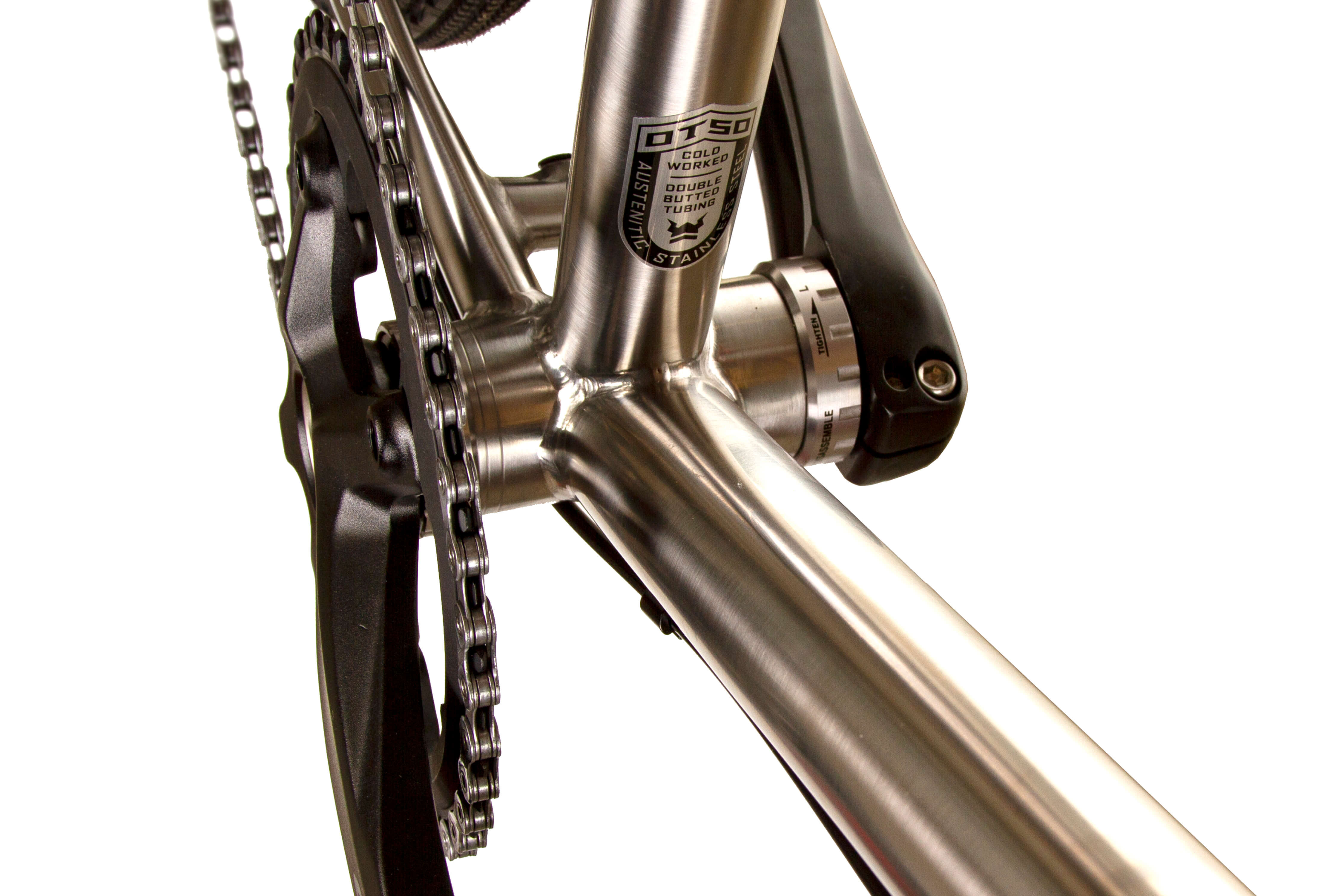

STAINLESS STEEL
The supple yet lively ride quality of steel with the corrosion resistance of titanium.

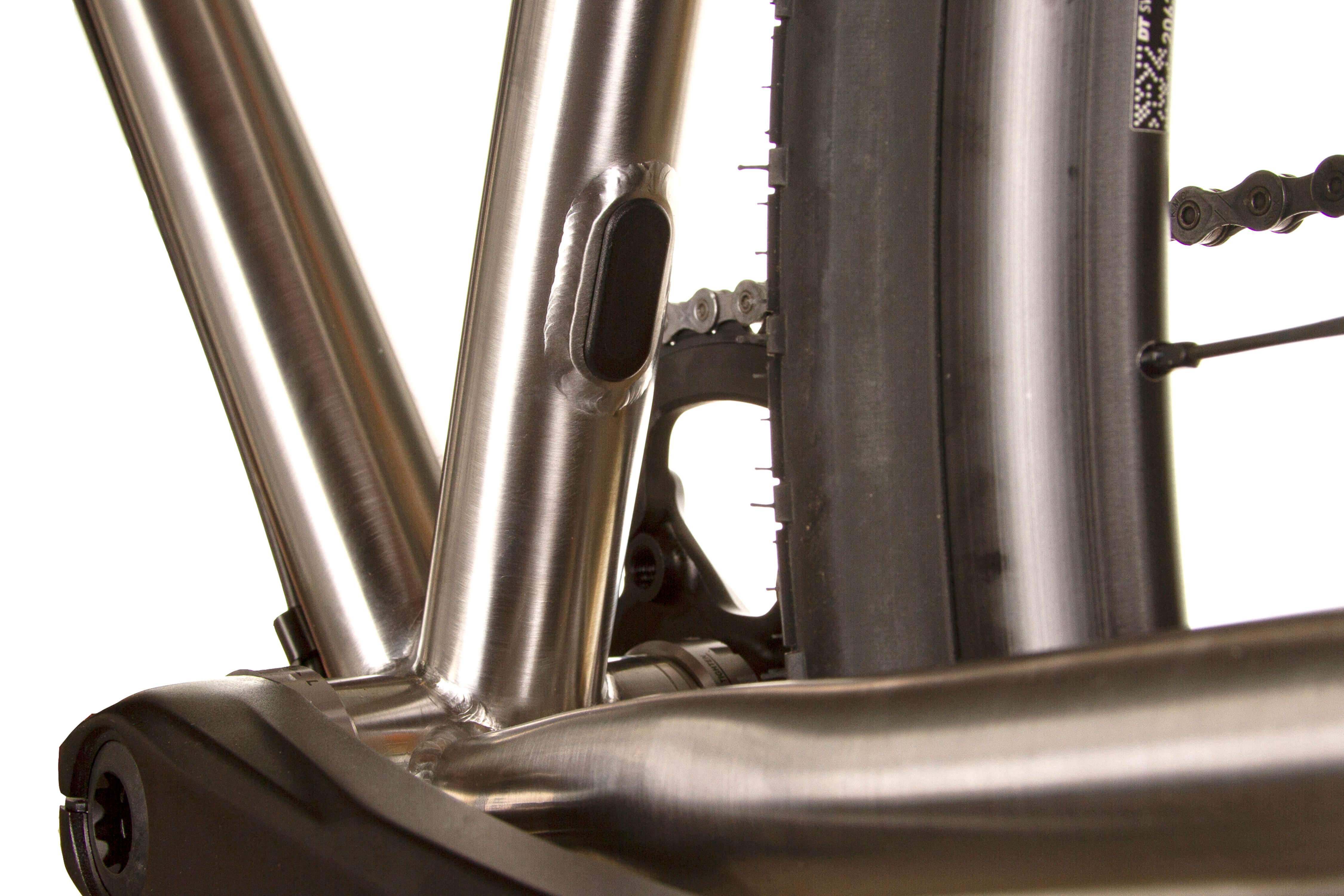

TIRE CLEARANCE
700c? Check! 650b? Double check! 29er? Triple check! Warakin has massive tire clearance.

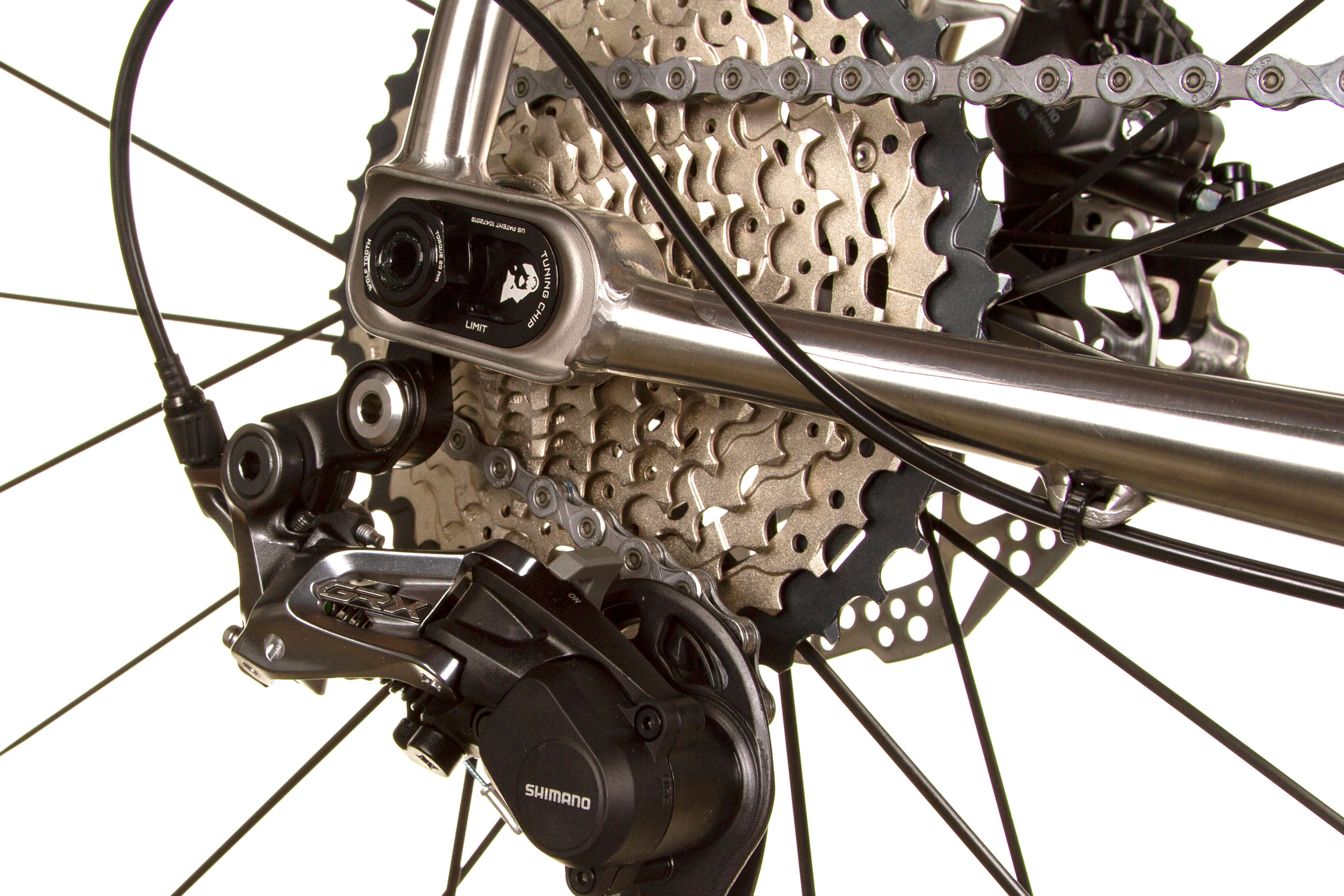

TUNING CHIP™
The patent pending Tuning Chip™ system provides 20mm of chainstay length and 4mm of bottom bracket height adjustment, allowing you to fine tune your ride.
TECHNICAL DETAILS
-
Base Build
-
Frame Specs
-
Geometry
-
Tires & Rims
-
Racks & Fenders
Frame | Warakin custom butted austenitic stainless steel frame |
Fork | Lithic full carbon fork, 12mm through-axle |
Headset | Wolf Tooth Precision Headset |
Rear derailleur | Shimano 105 GS, 11 speed |
Front derailleur | Shimano 105 |
Shifters | Shimano 105 mechanical, 11 speed |
Cassette | Shimano 105, 11-32t, 11 speed |
Brakes | Tektro MD-C550, flat mount |
Cranks | Shimano FC-RS510: 170mm for 49, 52; 172.5mm for 54, 56; 175mm for 58, 60 |
Bottom bracket | Shimano english thread BSA, Ø68mm |
Handlebar | Lithic Corundum aluminum compact drop with 16° flare |
Grips | Cork handlebar tape, black |
Stem | 6061 aluminum |
Seatpost | 6061 aluminum |
Seatpost Clamp | Wolf Tooth 29.8mm |
Seat | WTB Volt with Otso graphics, 142mm |
Wheels | DT Swiss C 1800 SPLINE |
Tires | Panaracer Gravel King SK 700x38 |
Chain | Shimano HG-11X |
Frame Sizes | 49cm, 52cm, 54cm, 56cm, 58cm, 60cm |
Bottom bracket standard | 68mm BSA threaded |
Q-factor | 146mm with Shimano RS510 crankset |
Maximum chainring size | 2x 53T round; 1x 50T round or 46T oval |
Front derailleur type | 31.8mm clamp, bottom pull |
Headset | ZS44/28.6 upper, EC44/40.0 lower |
Seatpost diameter | Ø27.2mm |
Internal dropper post routing | Yes. Exit port on bottom of seat tube |
Seatpost clamp | Ø31.8mm |
Front/rear hub standard | 100x12mm thru axle / 142x12mm thru axle |
Front/rear axle | Ø12x125mm front, TP=1.5, TL=15mm / Ø12x180mm rear, TP=1.5, TL=12mm |
Derailleur hanger | Wolf Tooth Tuning Chip Right Dropout |
Rear brake (rotor) | Flat mount, 74mm post mount available(160mm) |
Front brake (rotor) | flat mount native, 74mm post mount adapter available (160mm) |
Fork axle-to-crown | 420mm |
Fork offset | 47mm |
Bare frame weight (54cm) | 4.7lbs (2120g) |
Fork weight (Lithic Hiili) | 490g |
Tire clearance (frame) | 40mm at 420mm chainstay position, 50mm at 430/440mm chainstay position |
Tire clearance (fork) | Max clearance 29x2.1" (54-622) |
Braze-ons | 3 bottle mounts, fender, rack, cable clamps |

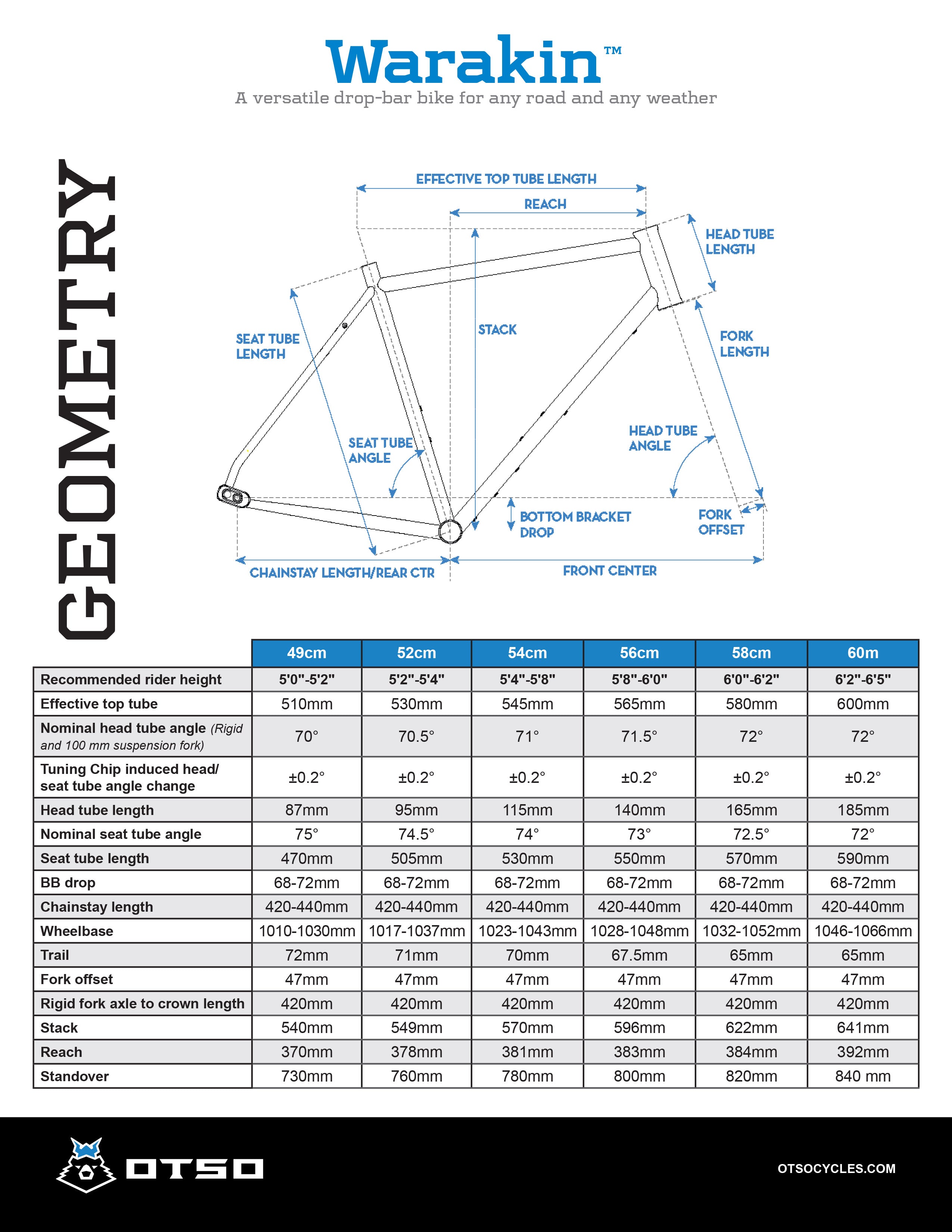

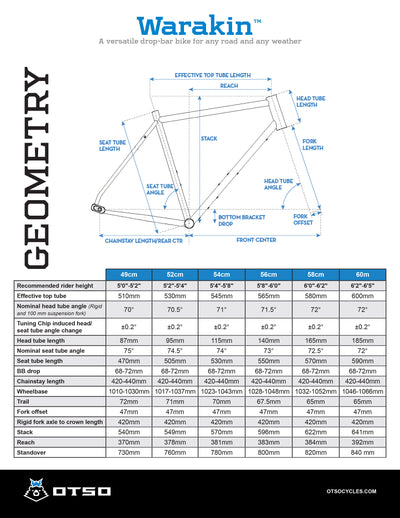

Frame Bag Dimensions | 49cm 52cm 54cm 56cm 58cm 60cm |
49cm | 52cm | 54cm | 56cm | 58cm | 60m | |
---|---|---|---|---|---|---|
Recommended rider height | 5'0"-5'2" | 5'2"-5'4" | 5'4"-5'8" | 5'8"-6'0" | 6'0"-6'2" | 6'2"-6'5" |
Recommended rider inseam | 27"-29" | 28"-30" | 30"-33" | 32"-34" | 33"-35" | 34"-37" |
Effective top tube | 510mm | 530mm | 545mm | 565mm | 580mm | 600mm |
Nominal head tube angle | 70° | 70.5° | 71° | 71.5° | 72° | 72° |
Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
Head tube length | 87mm | 95mm | 115mm | 140mm | 165mm | 185mm |
Nominal seat tube angle | 75° | 74.5° | 74° | 73° | 72.5° | 72° |
Seat tube length | 470mm | 505mm | 530mm | 550mm | 570mm | 590mm |
Bottom bracket drop | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm |
Chainstay length | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm |
Wheelbase | 1010 - 1030mm | 1017-1037mm | 1023-1043mm | 1028-1048mm | 1032-1052mm | 1046-1066mm |
Trail | 72mm | 71mm | 70mm | 67.5mm | 65mm | 65mm |
Fork offset | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm |
Rigid fork axle to crown length | 420mm | 420mm | 420mm | 420mm | 420mm | 420mm |
Stack | 540mm | 549mm | 570mm | 596mm | 622mm | 641mm |
Reach | 370mm | 378mm | 381mm | 383mm | 384mm | 392mm |
Standover | 735mm | 760mm | 780mm | 800mm | 820mm | 840 mm |
Compatible fenders
SKS - Speedrocker (for 23 - 42mm tires)
SKS - S-Board and S-Blade
SKS - Commuter II
PDW - Sodapop
Ass Savers - Mudder Mini front and Fendor Bendor Regular
compatible racks
Axiom - Streamliner 29er DLX Rear Rack (requires Tuning Chip with threaded rack mounts)
Topeak - Uni Super Tourist DX Rear Rack (requires Tuning Chip with threaded rack mounts)
Blackburn - Outpost Rear World Touring Rack (requires Tuning Chip with threaded rack mounts)
Old Man Mountain - Divide Front Rack axle mounted with Fit Kit SET705.R
Old Man Mountain - Divide Rear Rack axle mounted with Fit Kit SET814
Old Man Mountain - Elkhorn Front Rack axle mounted with Fit Kit SET705.R
Old Man Mountain - Elkhorn Rear Rack axle mounted with Fit Kit SET814
Frame Bag Dimensions
(click on links to view PDF drawings)
