Waveform Performance Aluminum Pedals

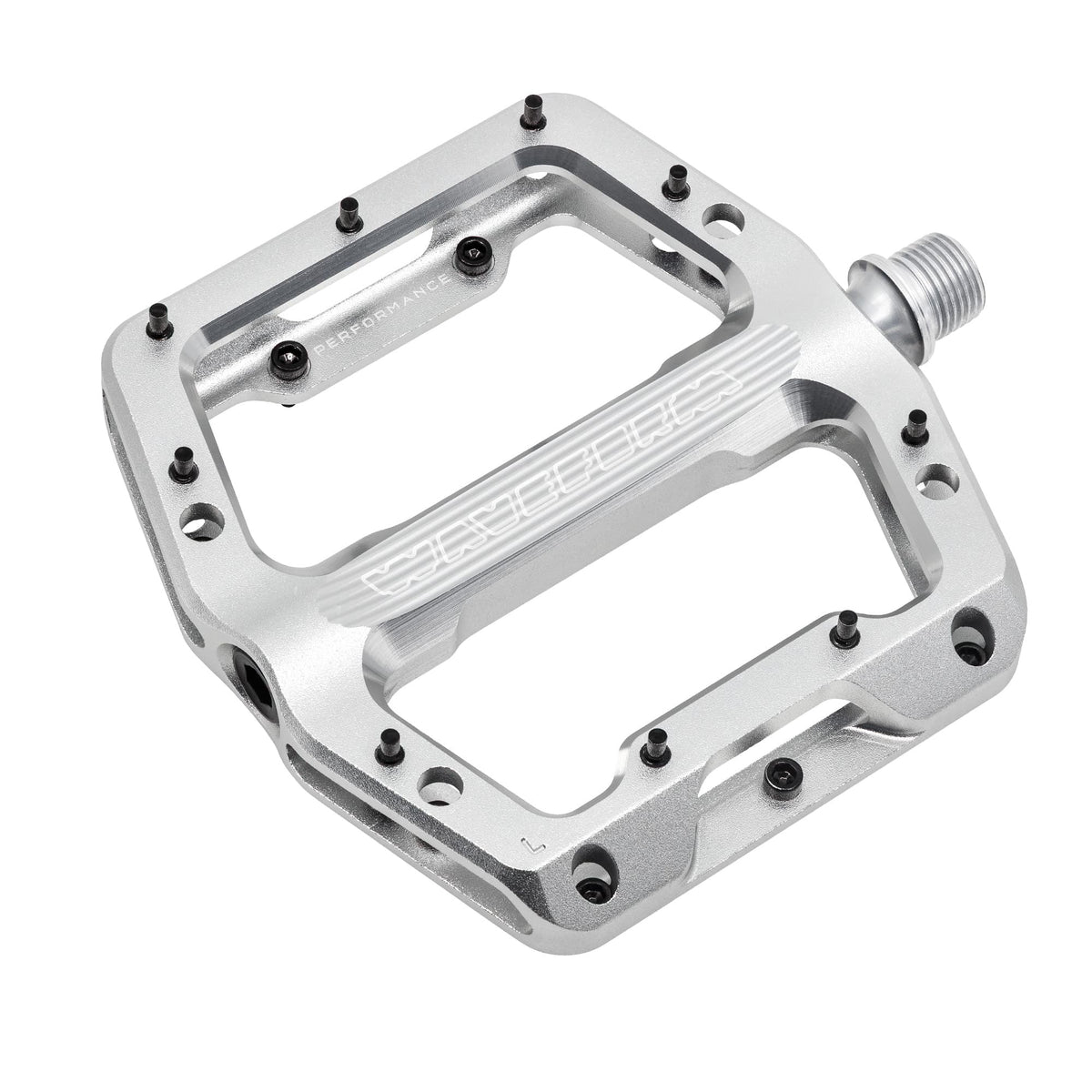

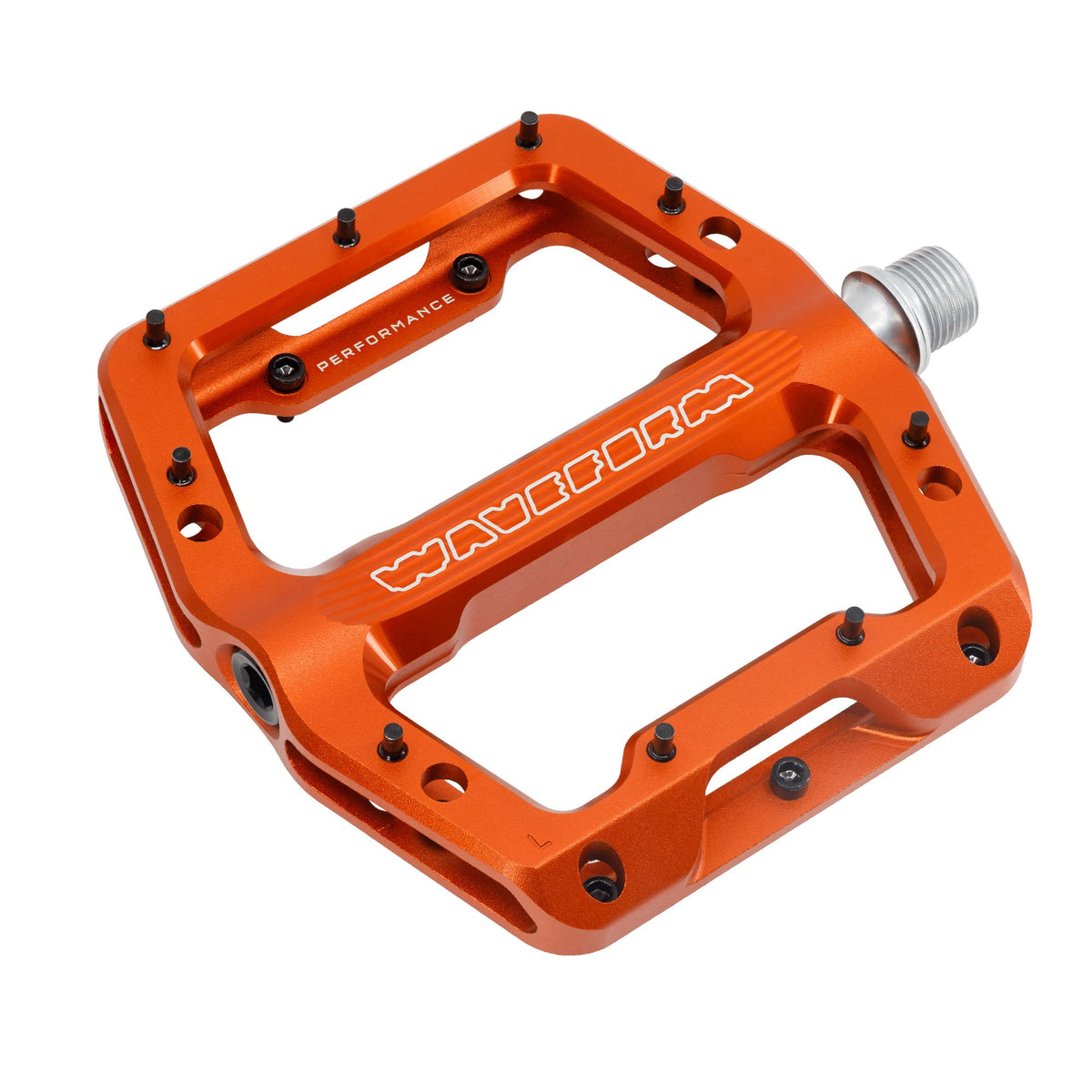

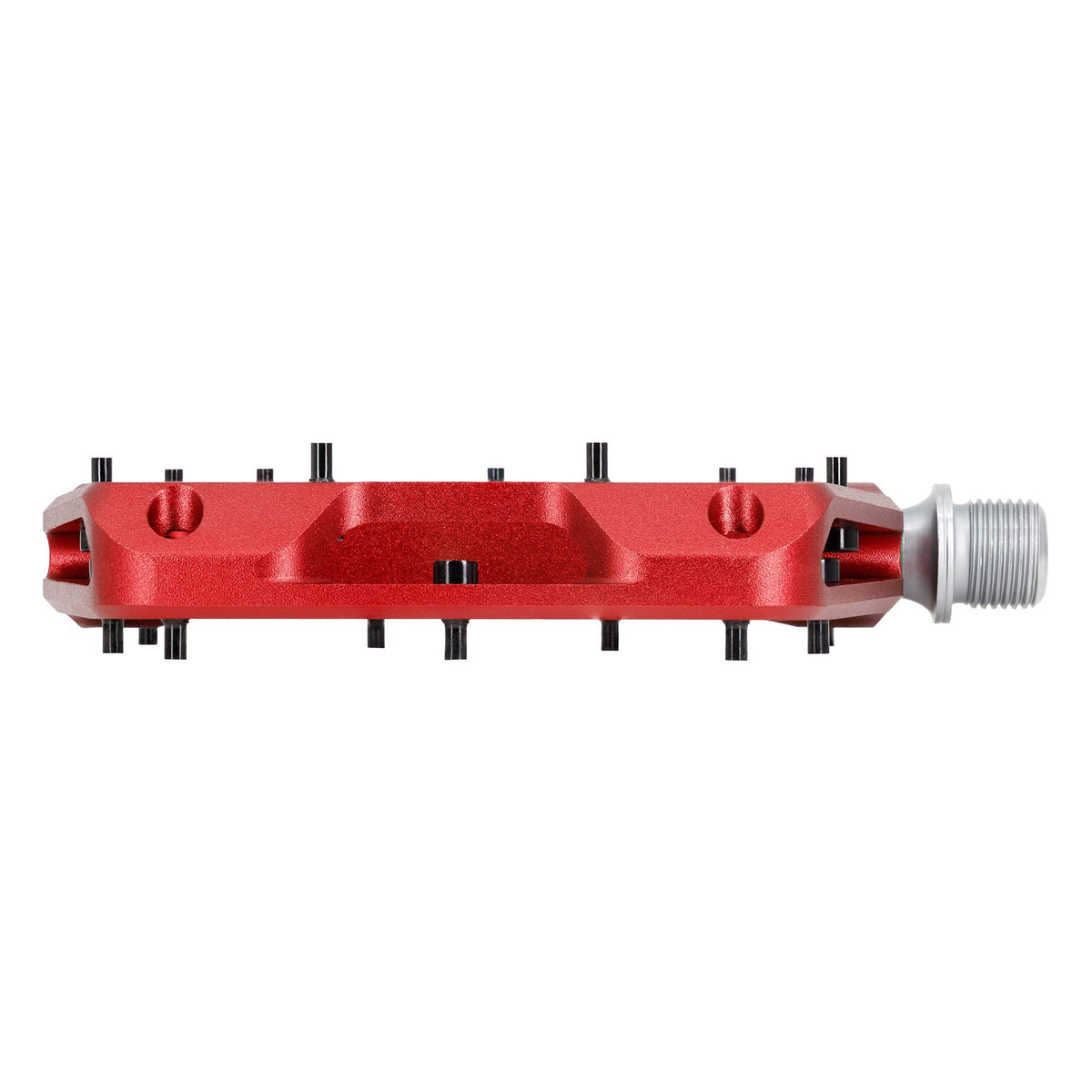

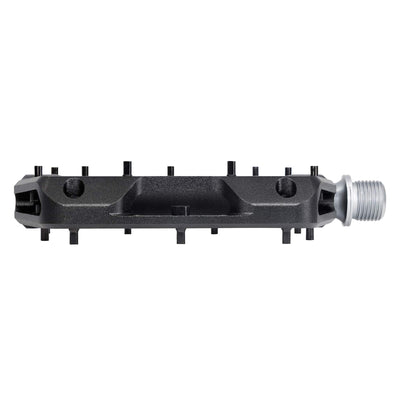

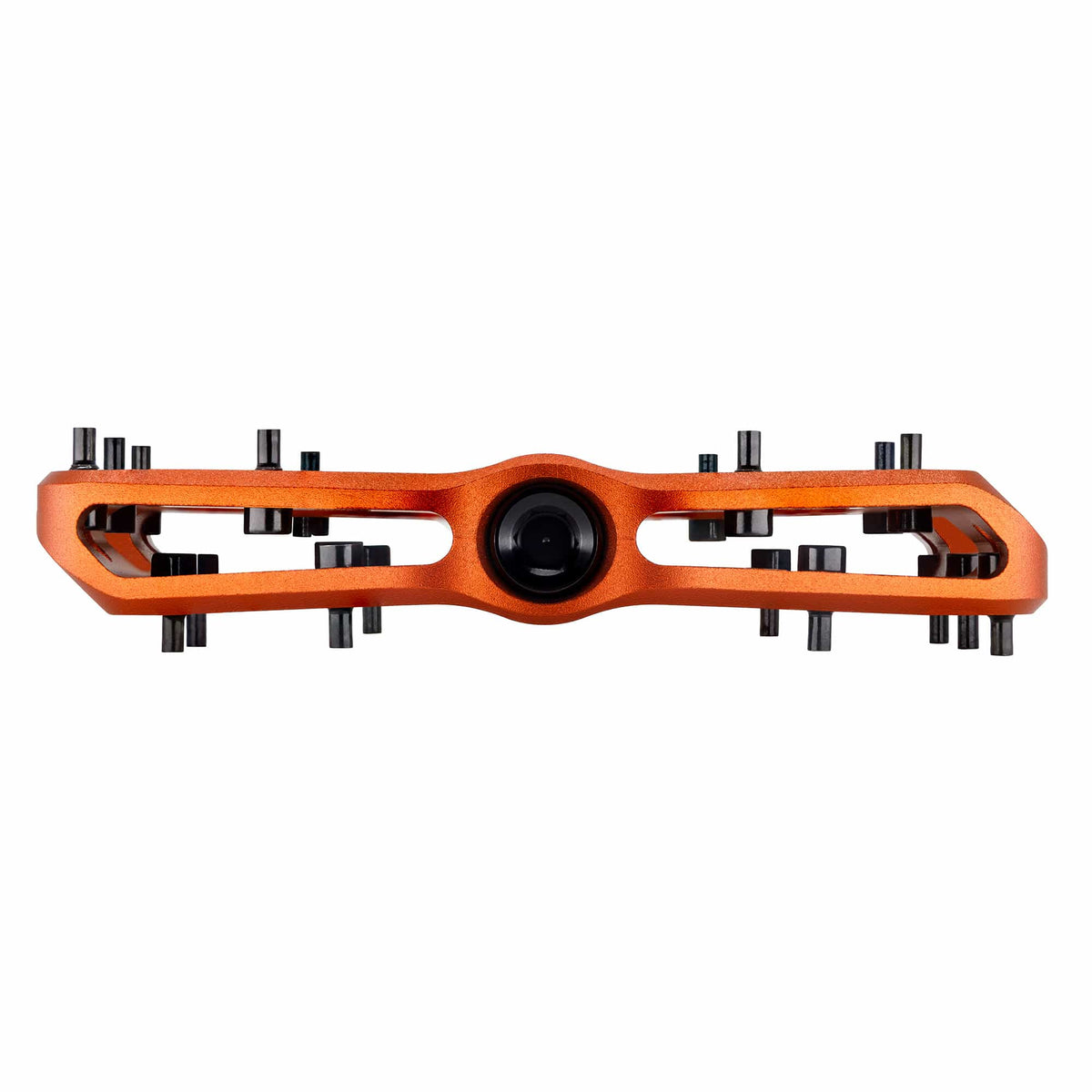

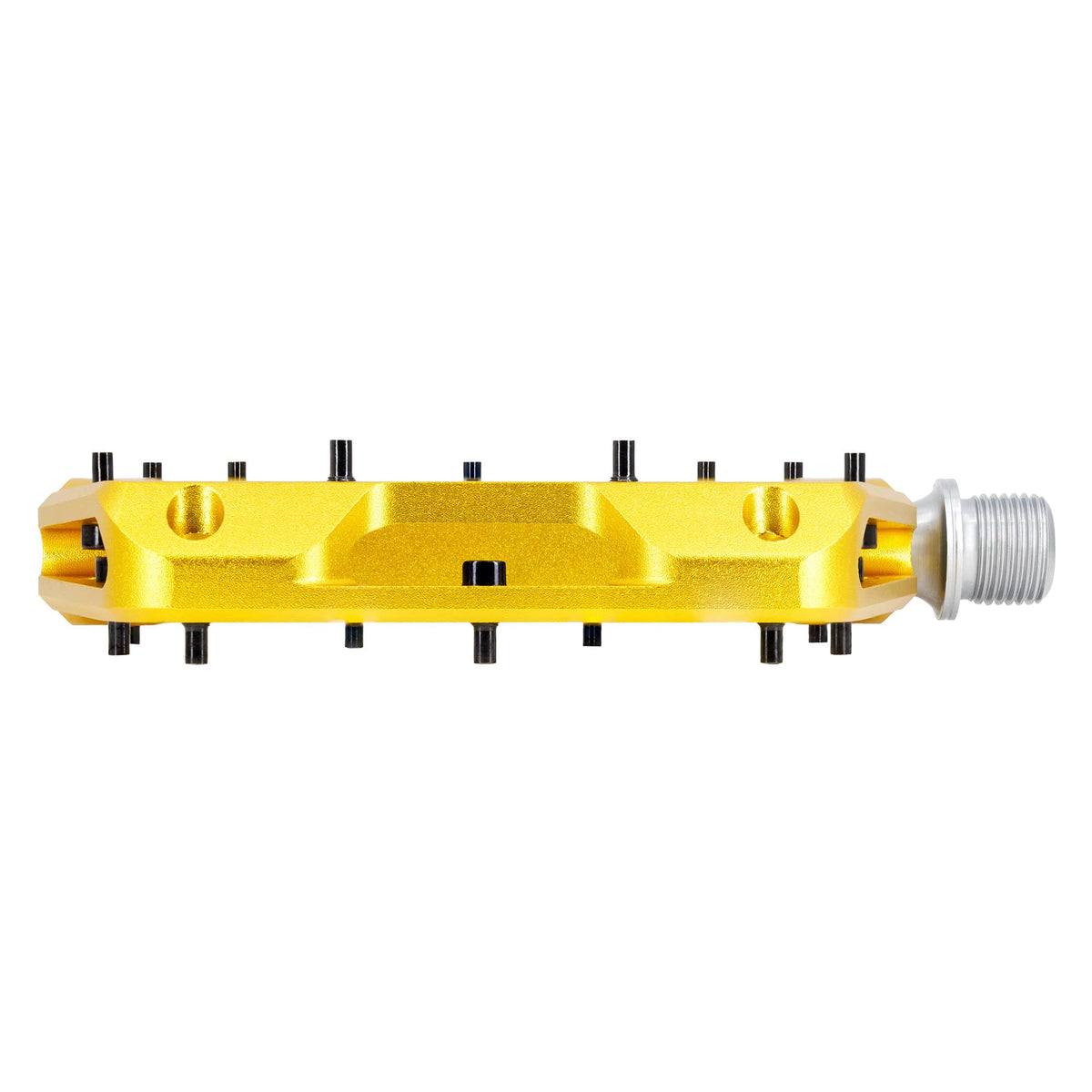

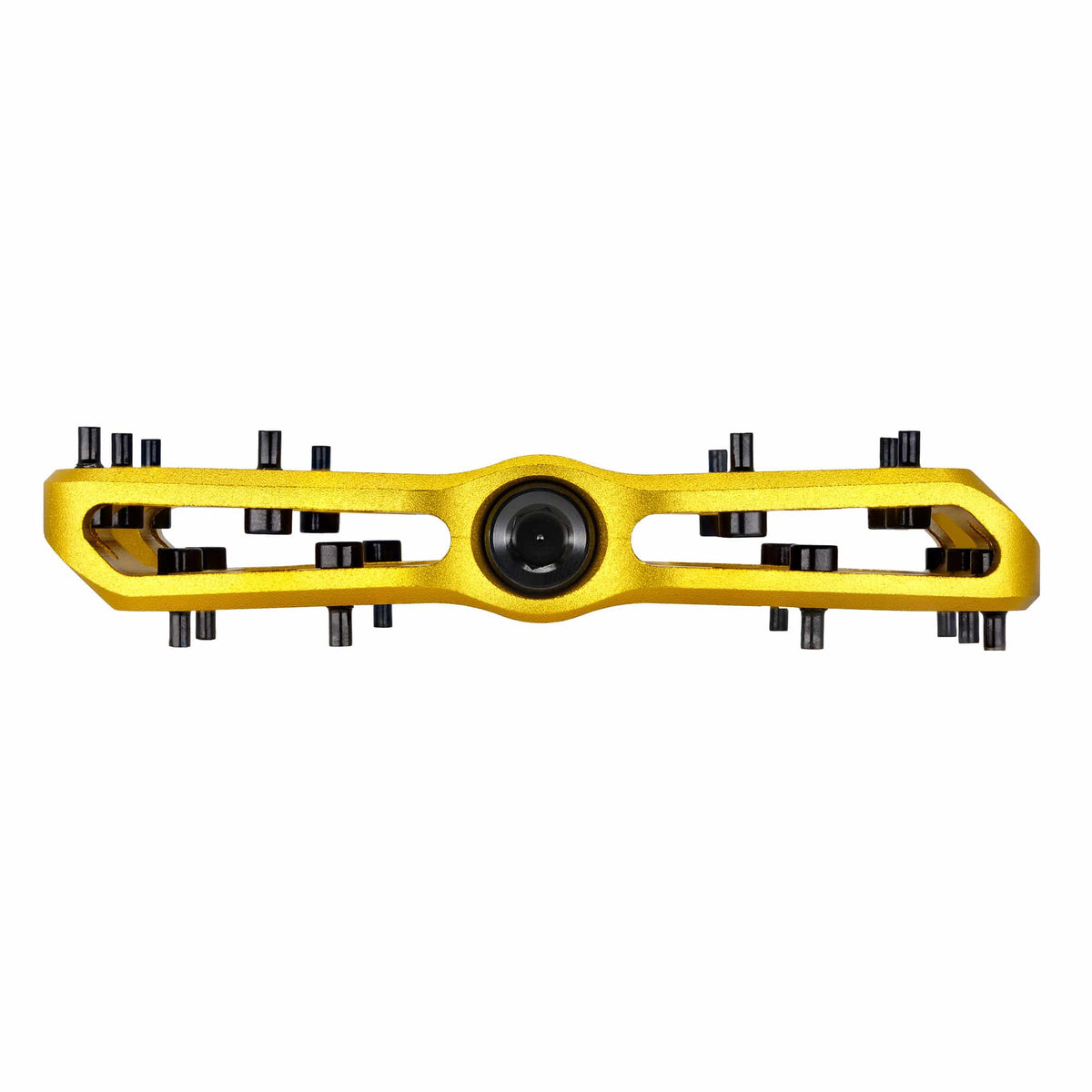

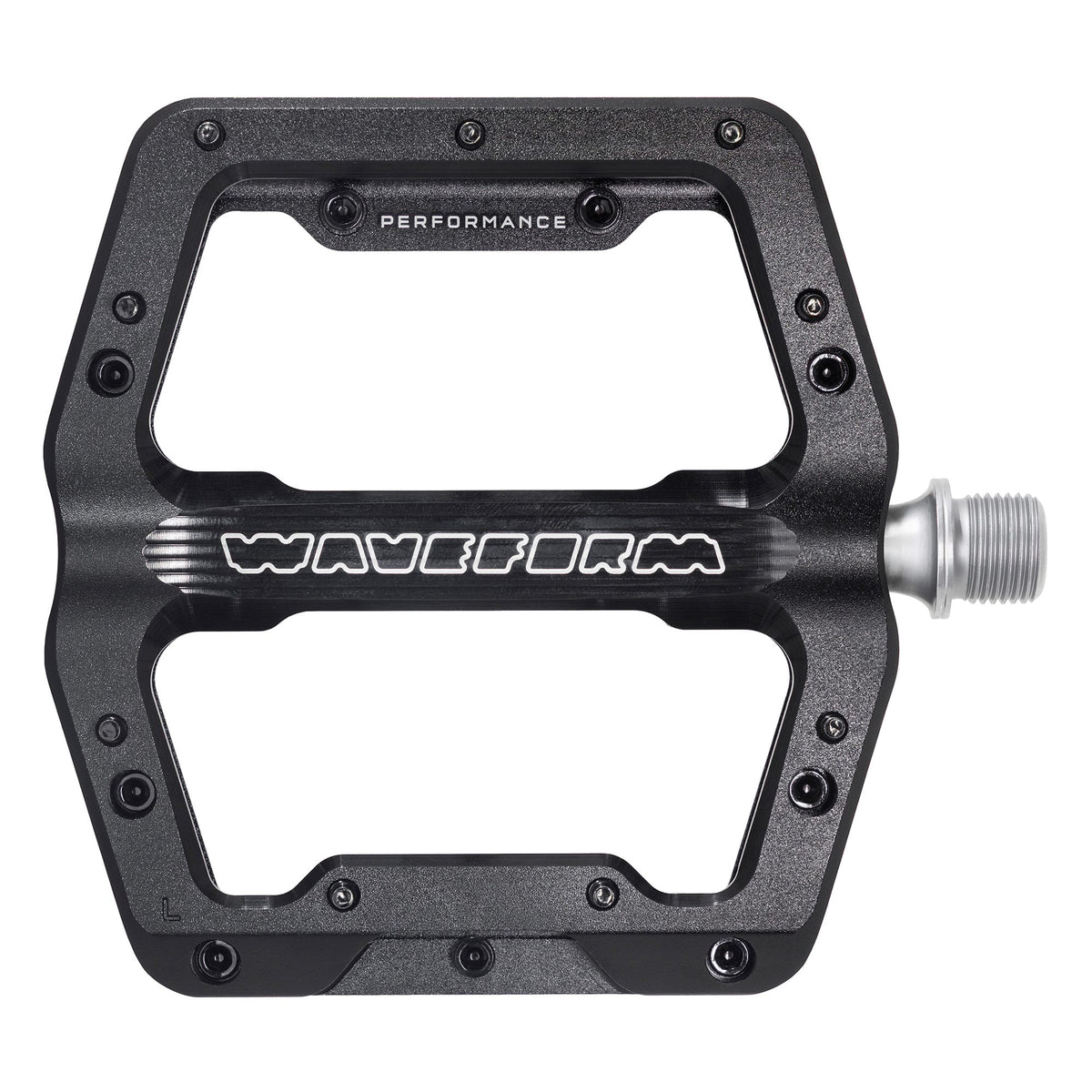

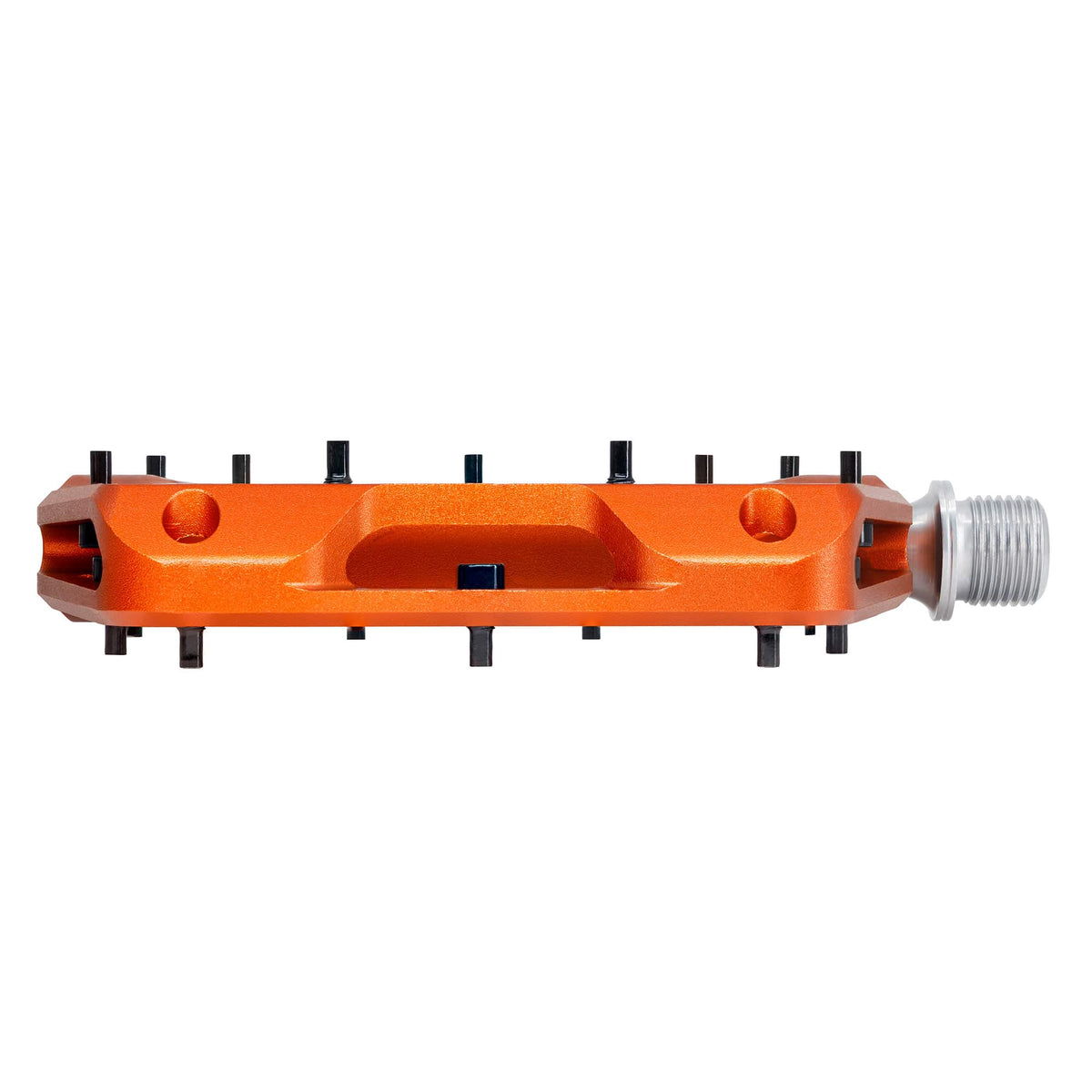

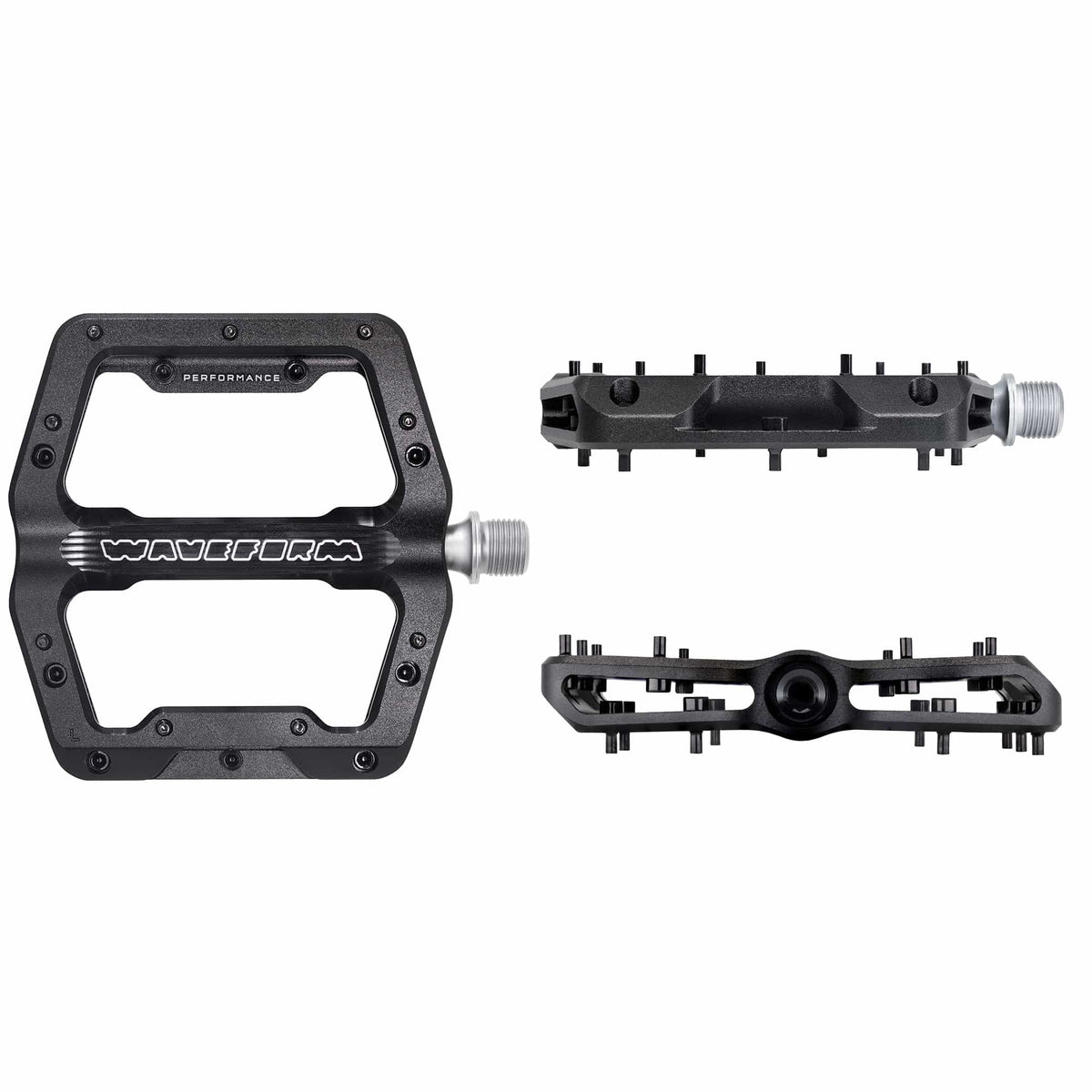

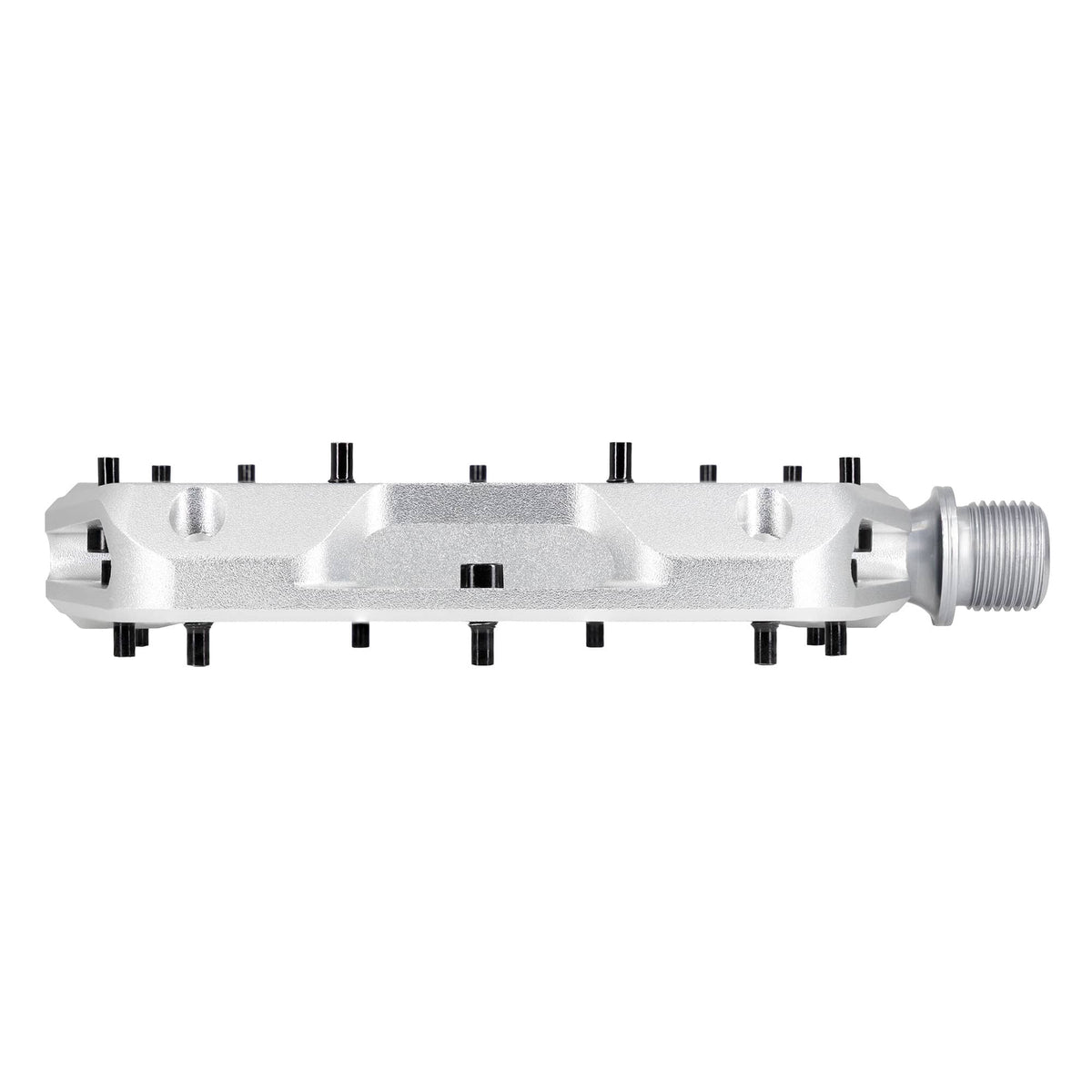

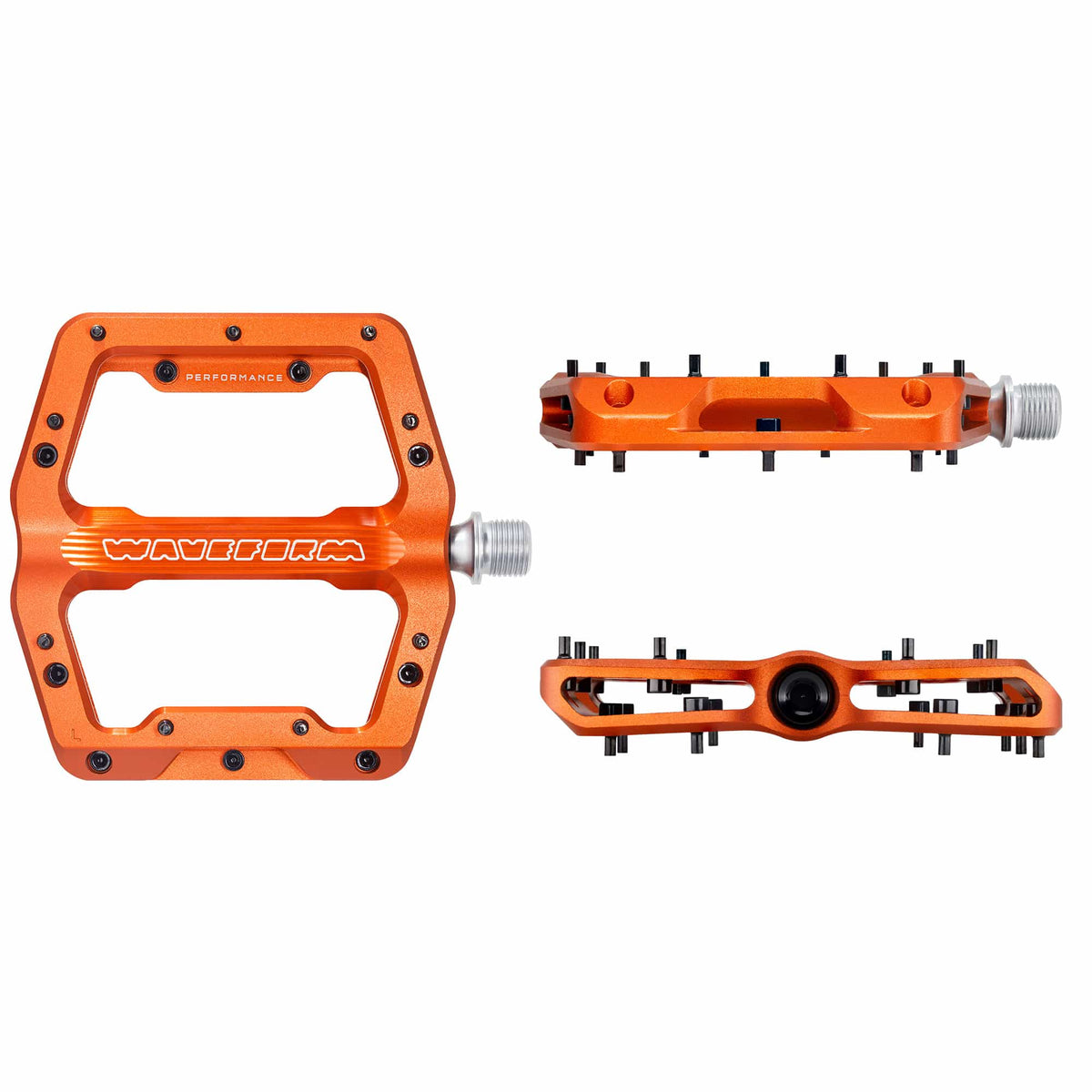

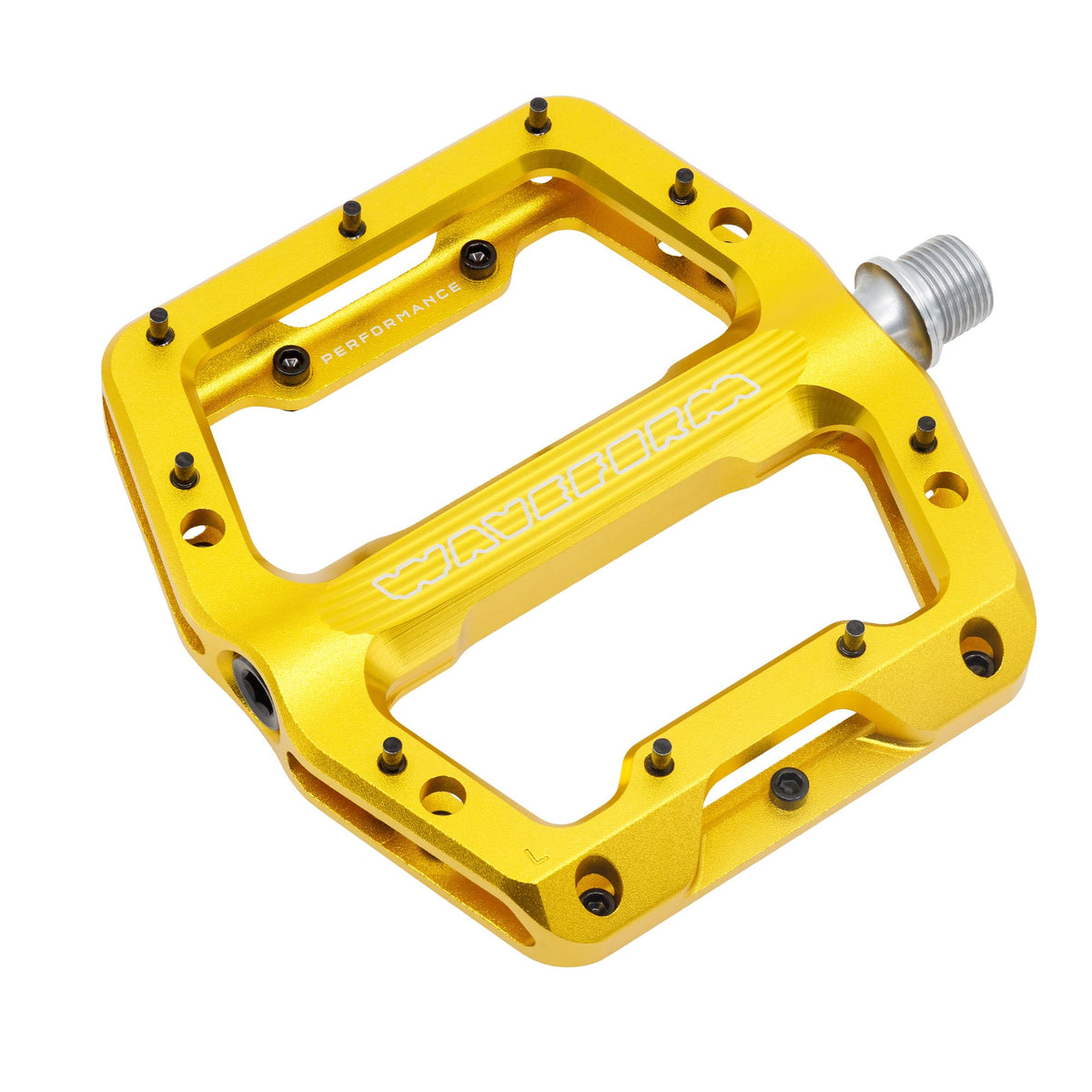

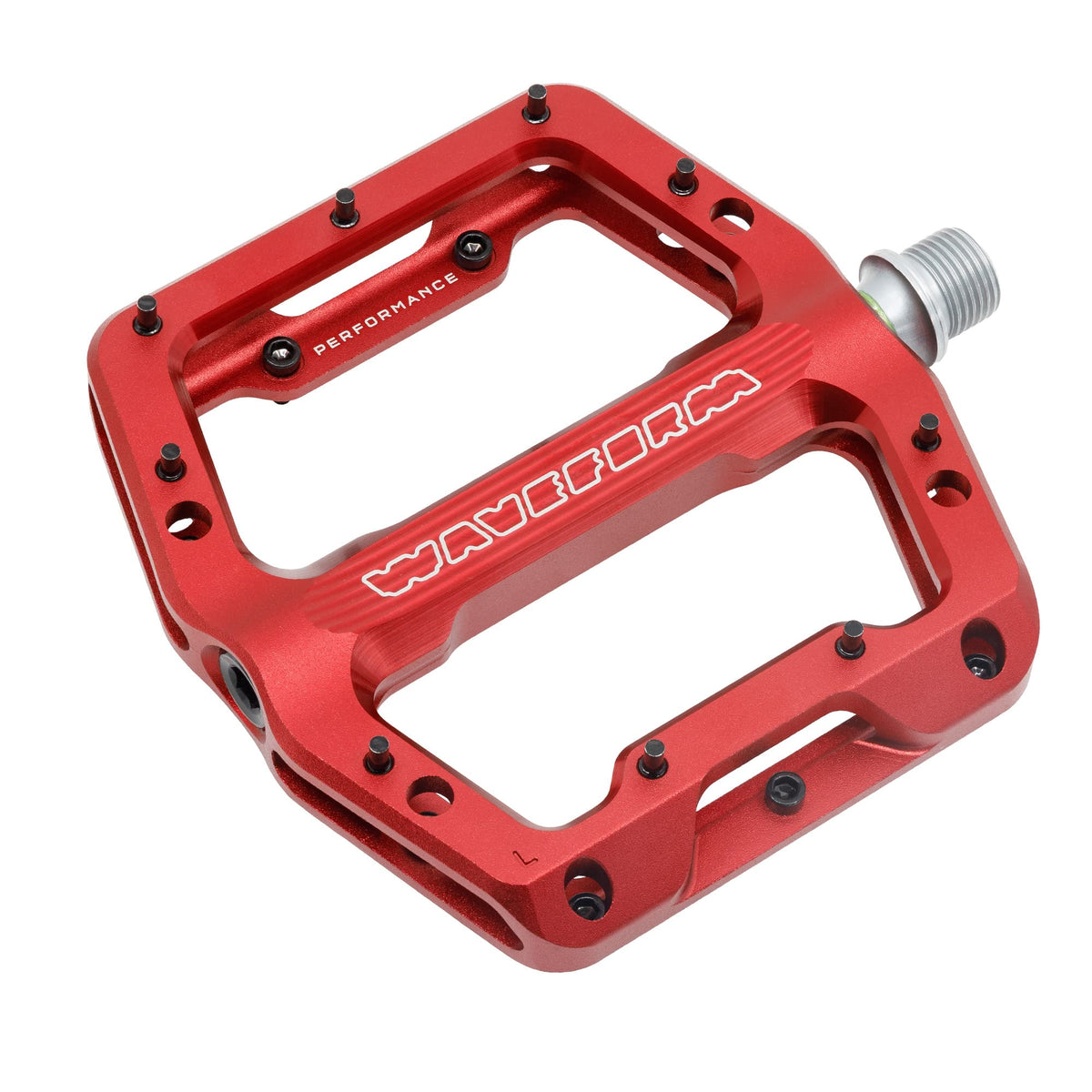

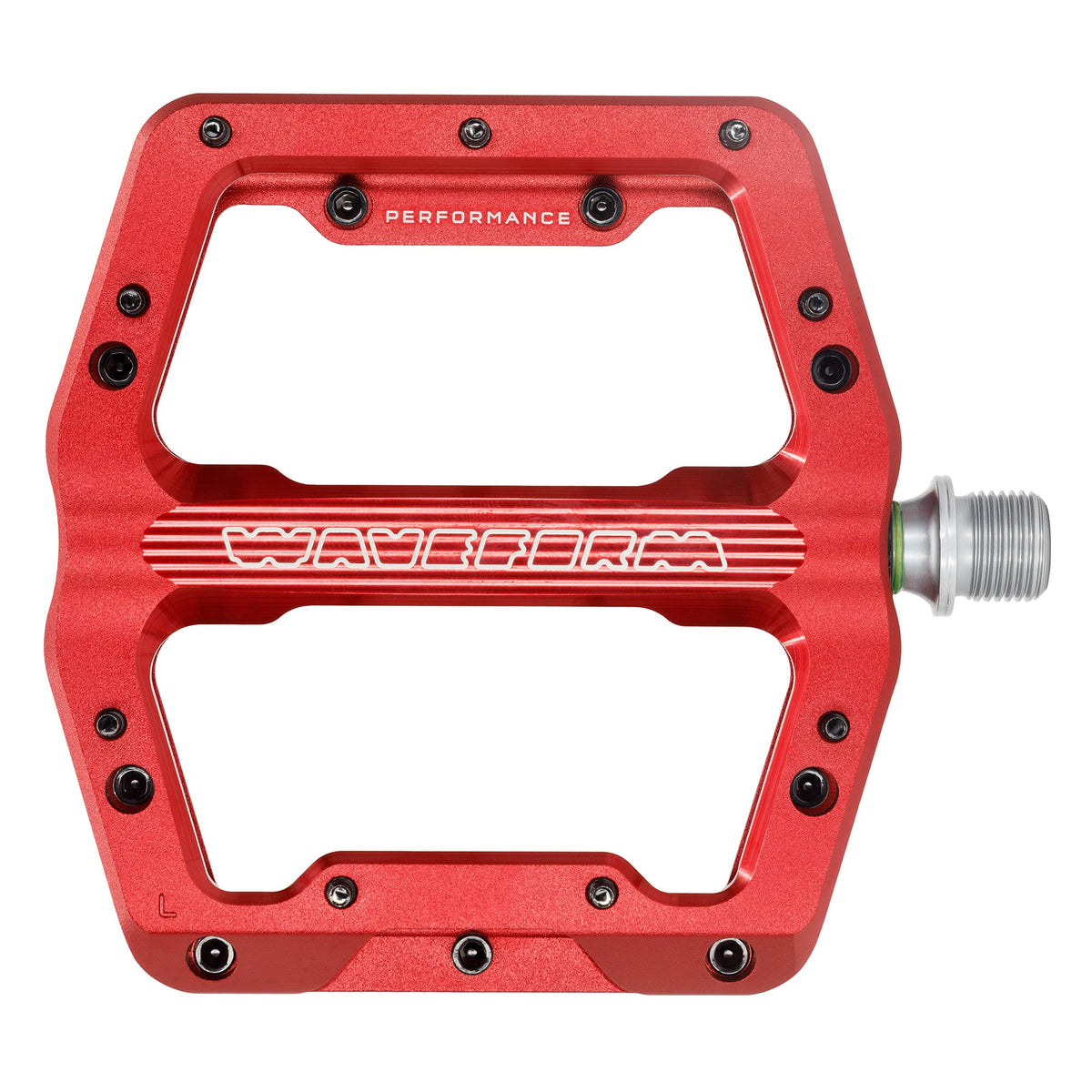

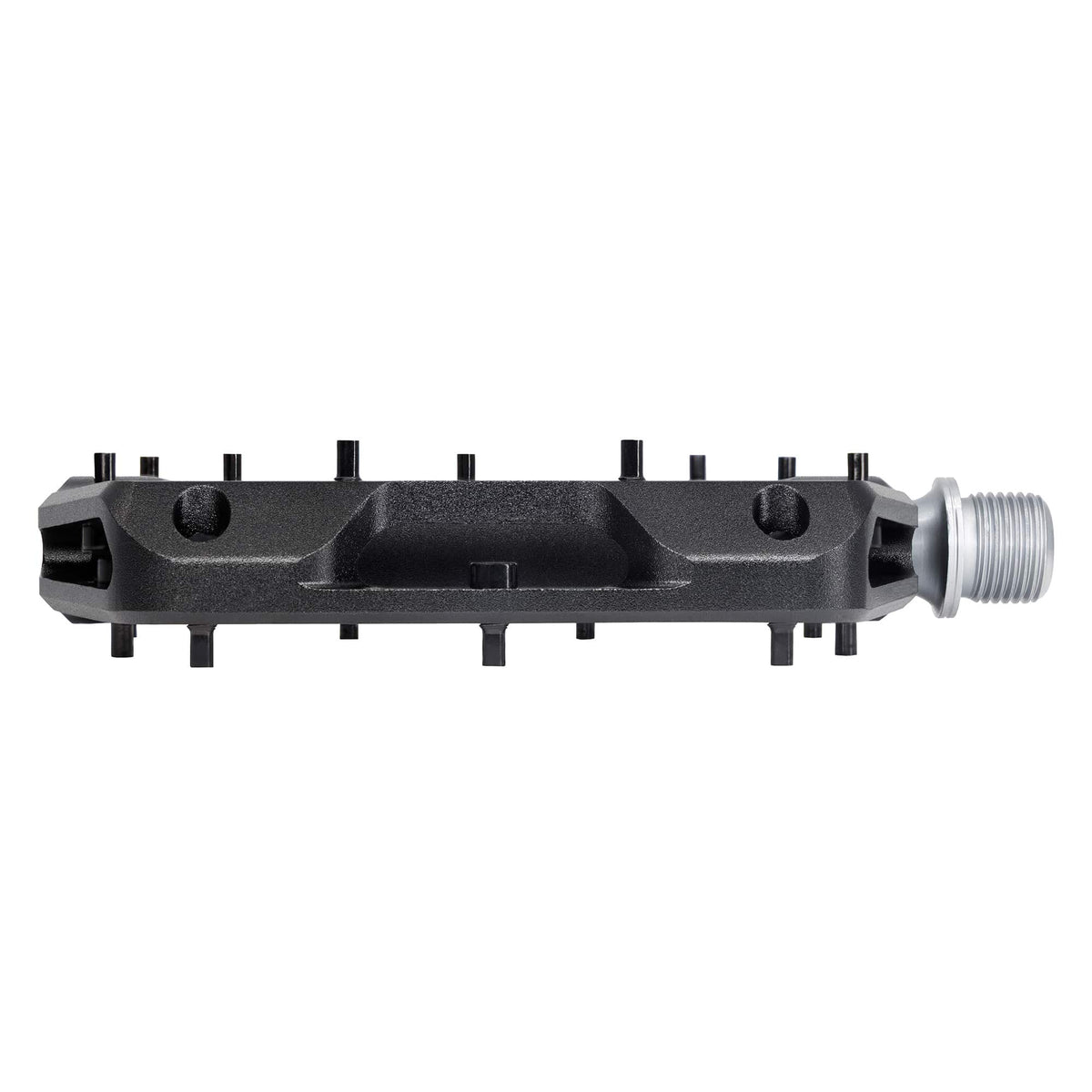

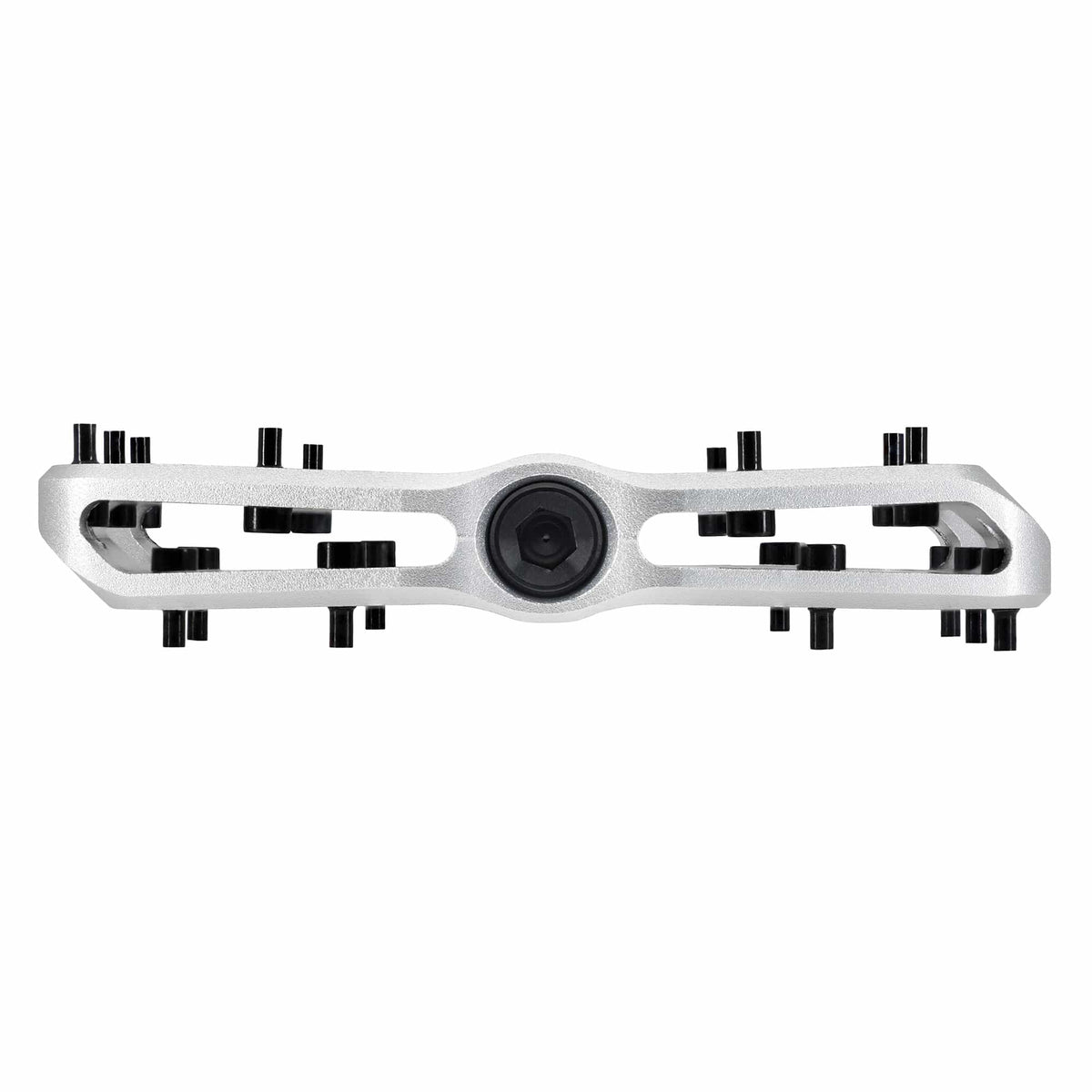

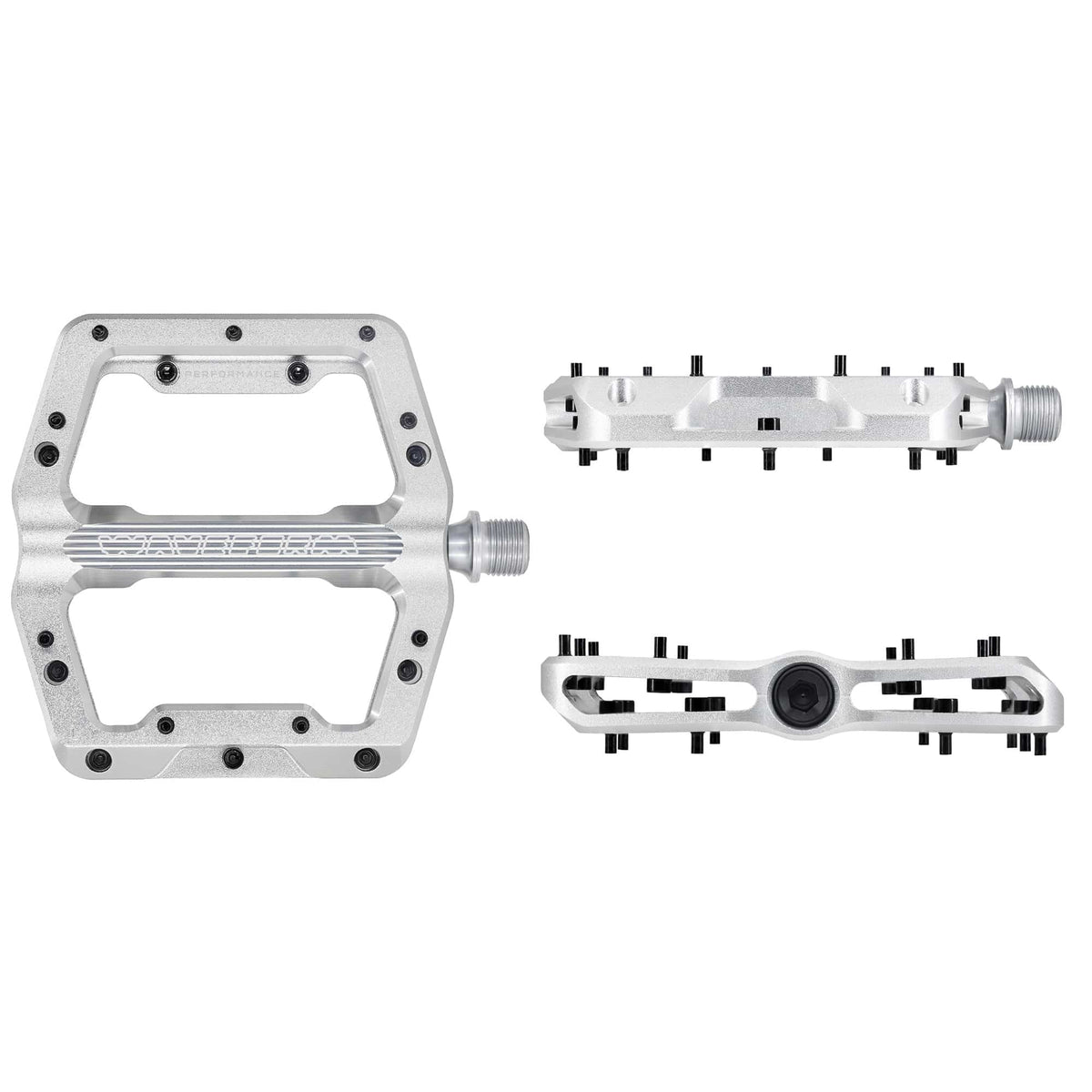

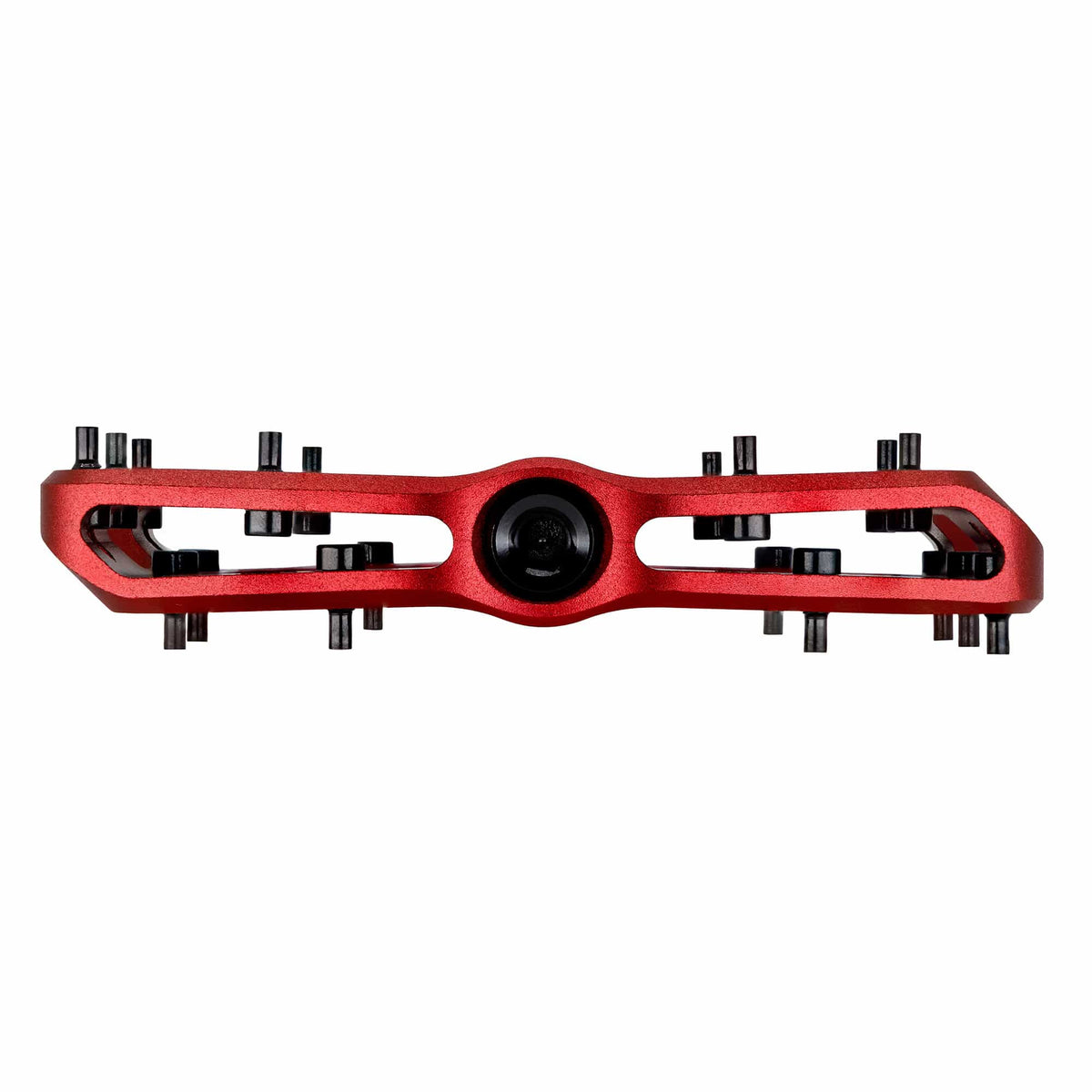

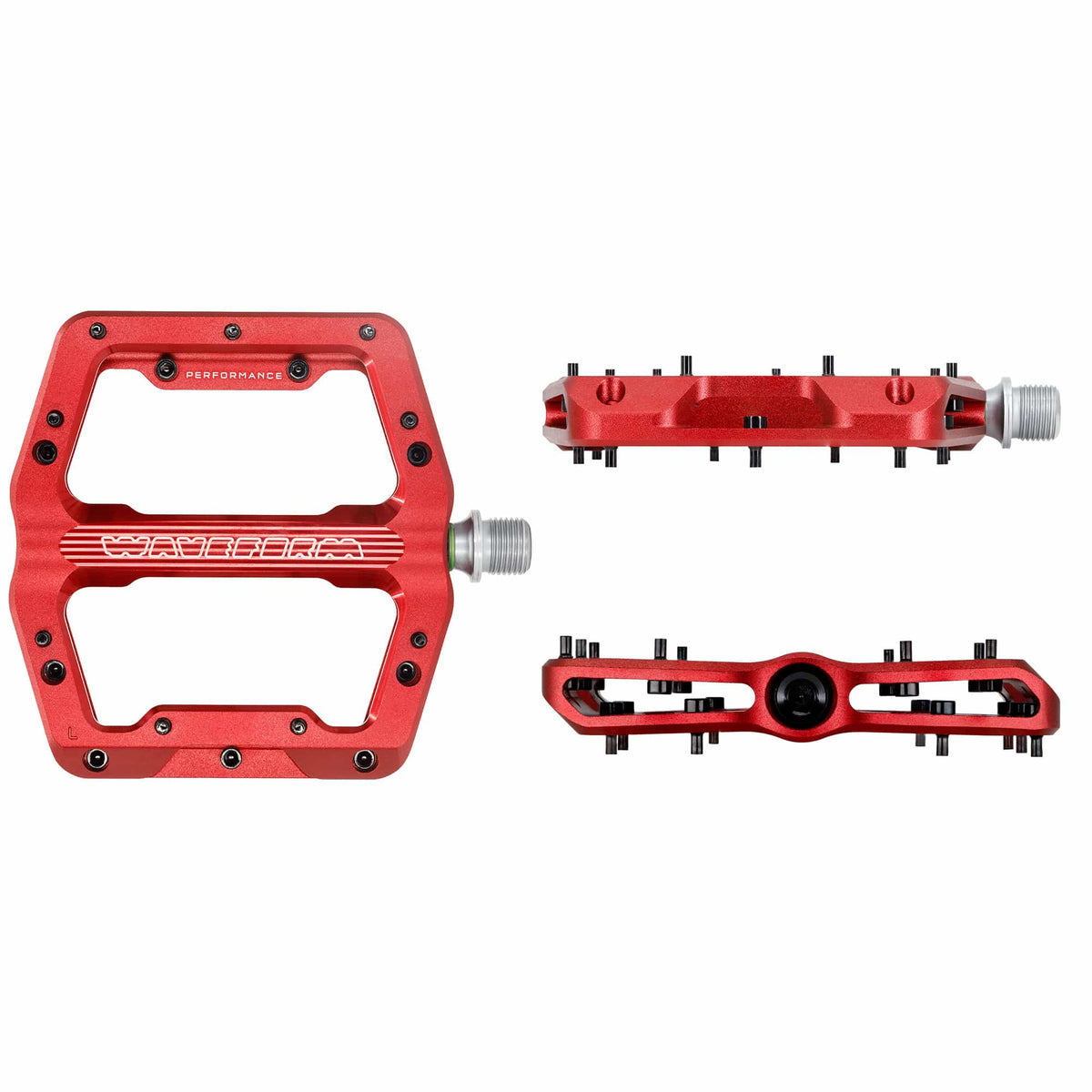

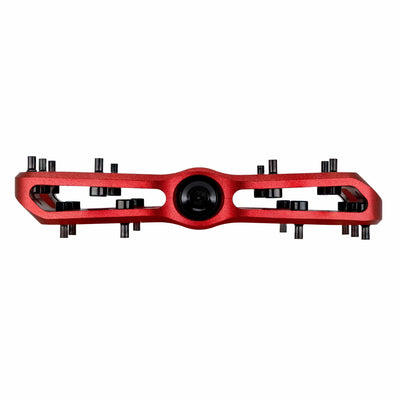

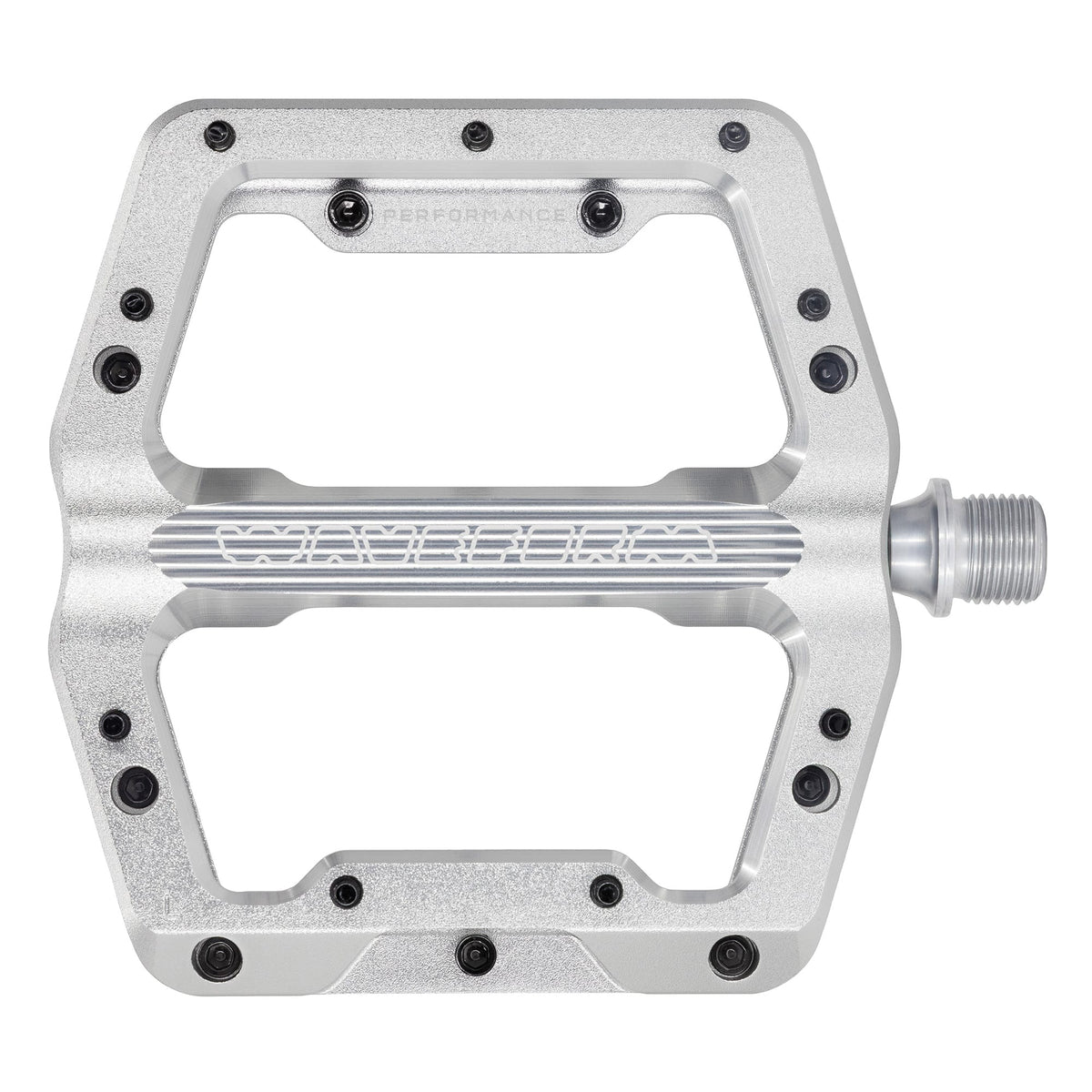

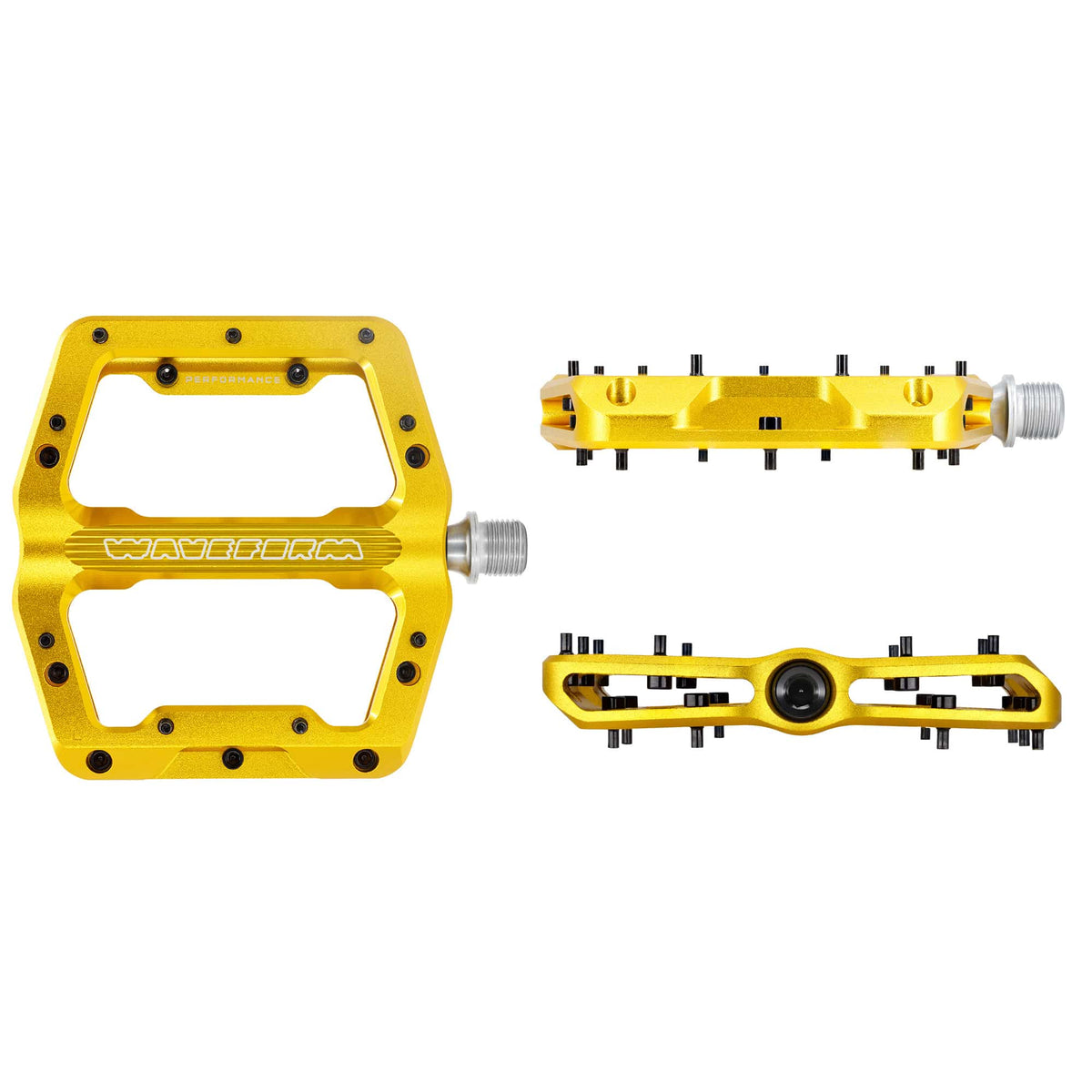

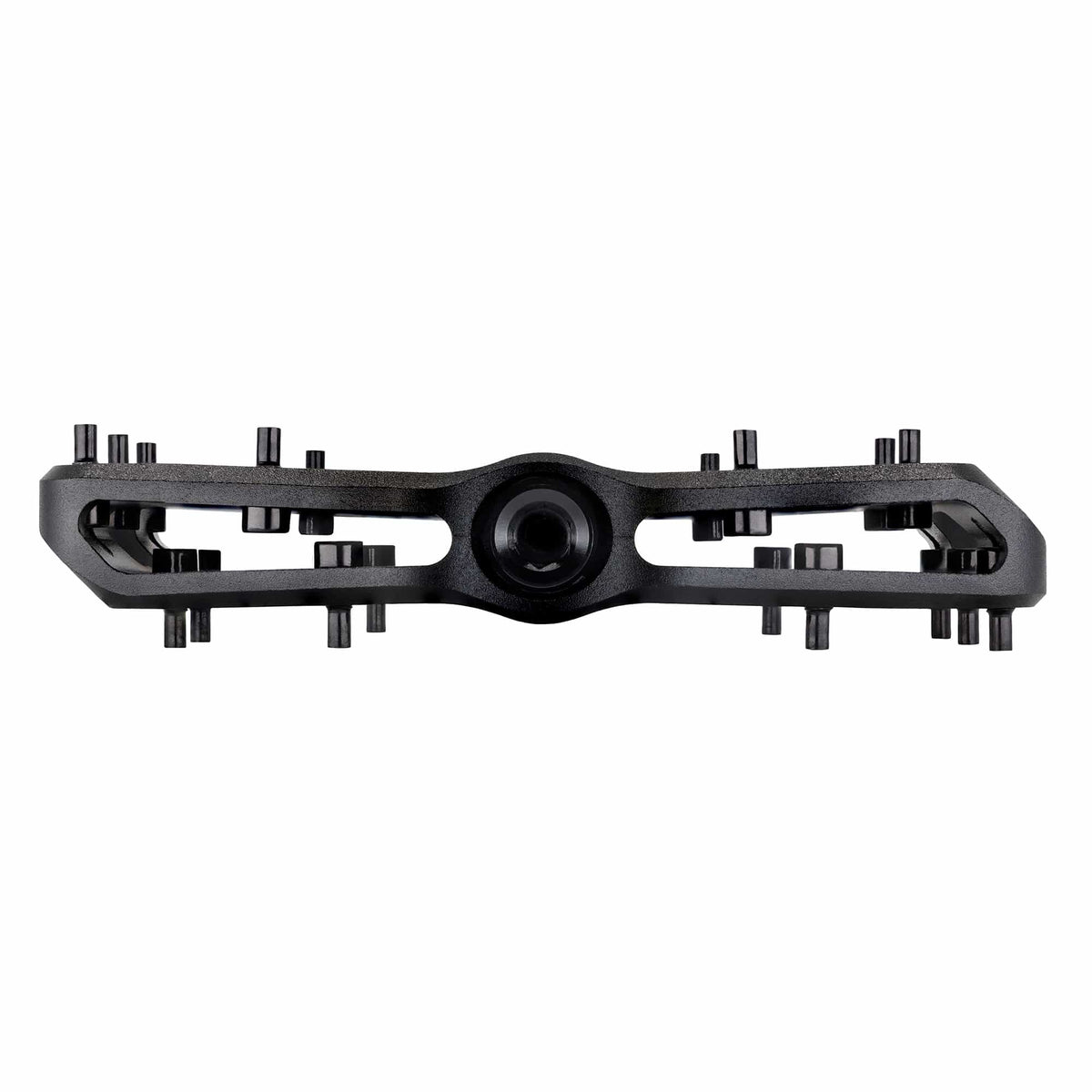

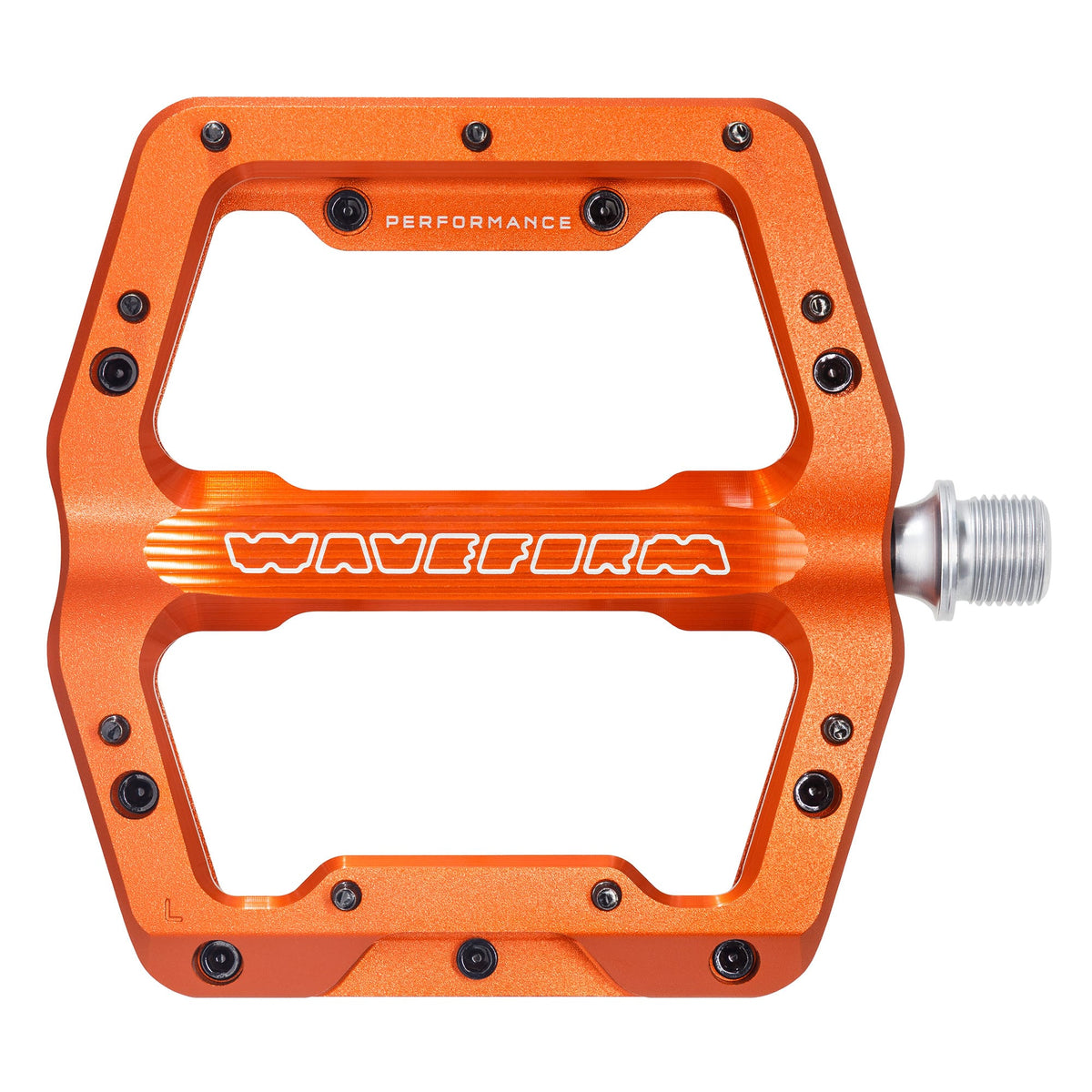

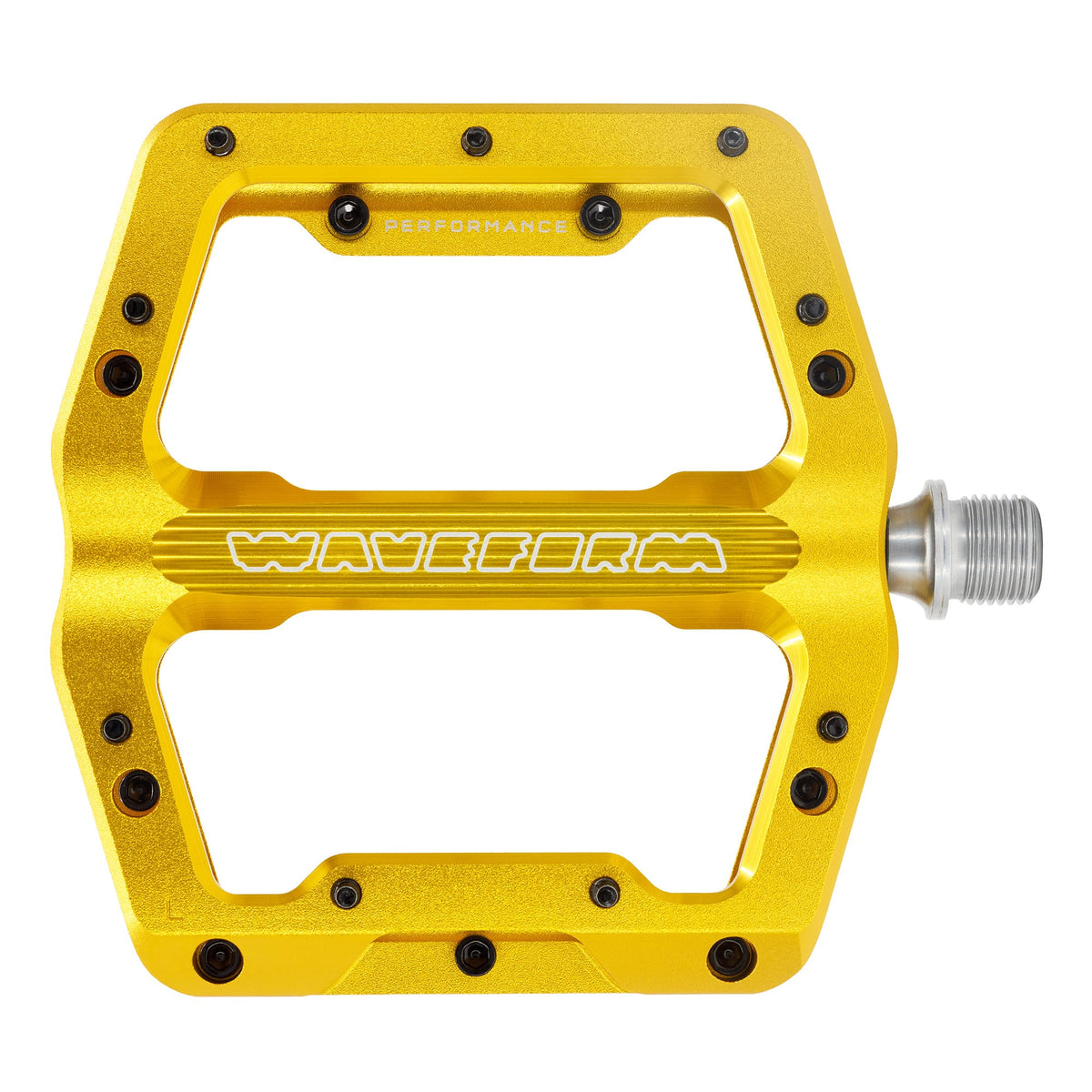

Wolf Tooth Waveform Performance Aluminum Pedals are designed for all-mountain riding. Trail to downhill, laps in the bike park, and everything in-between. The pedals provide a supportive platform, shaped to match the footprint of your shoe. They have a slim, dual-concave profile that is 16mm thick at the perimeter and just 13.5mm thick in the center, cradling your foot for optimal pedal feel. Each side of the pedal has 9 steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.
- Large platform measures 112mm x 106mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one inboard igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Nine steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes
- Available in five colors
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes four extra grip pins. More pins are available on the replacement parts page. See installation instructions for recommendations on installing pins.
Compatibility
- Fits all cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Related Products
Waveform Pedals Replacement Parts
Tech Specs
Waveform Pedal Replacement Parts
Waveform Pedals Factory Service
Weight: 384 g
Size (length x width): Large: 122 mm x 106 mm
Pin Height: 4.5mm
Material: Platform: Extruded and Post-Machined Aluminum; Axle: Satin Nickel-Plated Chromoly Steel; Pins: Steel
