Waheela S was designed from the ground up to be the most versatile gravel bike available. The first suspension-corrected gravel bike on the market, the
Waheela S can run a suspension or rigid fork. If you're riding terrain that requires suspension, you'll also need a frame with giant tire clearance. The Waheela S can fit up to 29" x 2.1" or 700c/650b x 53mm tires.
Waheela S
choose your own adventure
PEAK GEOMETRY™
Our Peak Geometry™ is the future of gravel. It centers the rider over the wheels for the perfect balance of speed and stability.
Comfort
The rider is perfectly balanced over the frame to boost performance and reduce fatigue, letting you ride faster and longer.
Confidence
The optimized body position produces a stable wheelbase that improves handling, across all surfaces and in any conditions.
Consistency
The same angles and proportions are maintained across frame sizes, giving every rider the same great experience.
SUSPENSION CORRECT
Waheela has a suspension corrected 420mm axle-to-crown fork and handles optimally with both rigid and gravel suspension forks.
REYNOLDS STEEL
Waheela S uses Reynolds 520 steel to produce a strong, light bike with a supple yet lively ride quality. The tubes also feature an electro-deposited (ED) coating inside and out for rust protection.
TUNING CHIP™
The patent pending Tuning Chip™ system provides 20mm of chainstay length and 4mm of bottom bracket height adjustment, allowing you to fine tune your ride.
AND SO MUCH MORE ...
TOP PERFORMER
Unparalleled ride quality results from the combination Reynolds 520 steel and carefully thought out frame geometry.
FORWARD THINKING
The increased reach of our RideForward design requires minimal changes to the head tube angle between sizes. This makes the geometry and handling more consistent between sizes while reducing to overlap on smaller frames.
RACE INSPIRED
Waheela features lower stacks for an improved fit and a slack seat tube angle for a race-friendly seat position with zero offset.
CLEARANCE FOR TAKE-OFF
Like the Warakin, Waheela has massive tire clearance and can be built up with tires ranging from all-road 700Cx28 through road-plus 650Cx53 to trail-ready 700Cx53 (29x2.1) for rough terrain.
HAVE RACKS? WILL TRAVEL
Numerous braze-ons allow Waheela to accommodate cable routing clamps, 3 water bottles, fenders, racks, frame bags, and more.
SHIFTY, BUT IN A GOOD WAY
Full-length cable housing provides flawless shifting in even the worst conditions.
HIP TO THE DROP
The Waheela frame is compatible with internal routing dropper seat posts.
QUALITY ASSURED
Designed by the Otso engineering team, Waheela frames are manufactured by one of the top steel frame fabricators in Taiwan and come with a five-year limited warranty. All bikes are inspected and assembled at our headquarters in Minneapolis, MN USA.
TECHNICAL DETAILS
-
Base Build
-
Frame Specs
-
Geometry
-

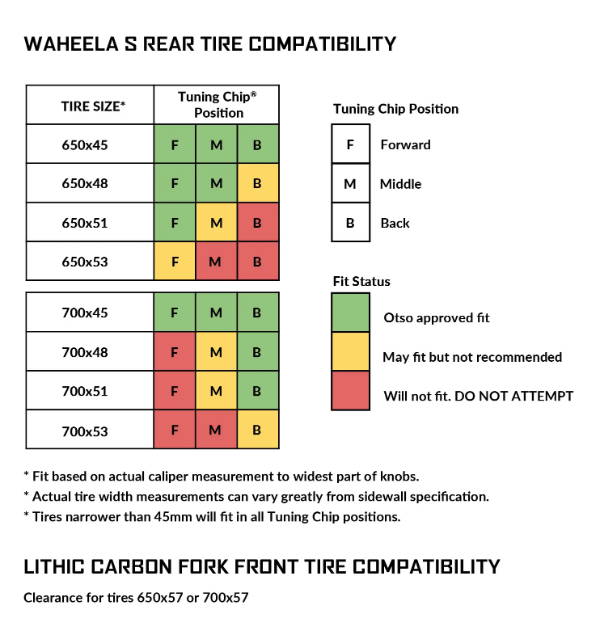

Tires & Rims
| Frame | Reynolds 520 with Tuning Chip™ dropout system |
| Fork | Lithic full carbon fork, 15mm thru-axle |
| Headset | Wolf Tooth Precision Headset |
| Rear derailleur | Shimano 105 GS, 11 speed |
| Front derailleur | Shimano 105, 28.6mm clamp |
| Shifters/Brake Levers | Shimano Ultegra hydraulic brake, 11 speed |
| Cassette | Shimano 105, 11-32t, 11 speed |
| Brakes | Shimano Ultegra, post mount |
| Cranks | Shimano RS510, 50/34t |
| Bottom bracket | Shimano english thread BSA, Ø68mm |
| Handlebar | Lithic Corundum aluminum compact drop with 16° flare |
| Bar Tape | Cork handlebar tape, black |
| Stem | 6061 aluminum |
| Seatpost | 6061 aluminum |
| Seatpost Clamp | Wolf Tooth 29.8mm |
| Seat | WTB Volt with custom Otso graphics |
| Wheels | DT Swiss C 1800 SPLINE 700C, 100x15mm front and 142x12mm rear hub spacing |
| Tires | Panaracer Gravelking SK 700x38 |
| Chain | Shimano HG-11X |
| Frame Sizes | S, M, L, XL |
| Weight (size M) | 22.8 lbs (10.3kg) set up tubeless |
| Bottom bracket standard | 68mm BSA threaded |
| Q-factor | 146mm with Shimano 105 crankset |
| Maximum chainring size | 2x 53T round; 1x 50T round or 46T oval |
| Front derailleur type | 28.6mm clamp, bottom pull |
| Headset | ZS44/28.6 upper, EC44/40.0 lower (optional 20mm extended lower cup included) |
| Seatpost diameter | Ø27.2mm |
| Seatpost clamp | Ø29.8mm |
| Front/rear hub standard | 100x15mm thru axle / 142x12mm thru axle |
| Front/rear axle | Ø15x100mm front, TP=1.5, TL=15mm / Ø12x180mm rear, TP=1.5, TL=12mm |
| Derailleur hanger | Tuning Chip Right Dropout |
| Rear brake (rotor) | flat mount (160mm) |
| Front brake (rotor) | flat mount native (160mm) |
| Fork axle-to-crown | 400mm (can be used with included 20mm extended headset cup) |
| Fork offset | 47mm |
| Bare frame weight (M) | 2150g |
| Fork weight (Lithic Hiili) | 490g |
| Tire clearance (frame) | 40mm at 420mm chainstay position, 50mm at 430/440mm chainstay position |
| Tire clearance (fork) | Max Clearance 29x2.1" (54-622) |
| S | M | L | XL | |
|---|---|---|---|---|
| Recommended rider height | 5'2"-5'7" | 5'6-5'11" | 5'10"-6'3" | 6'2"-6'6" |
| Recommended rider inseam | 29"-32" | 30"-34" | 33"-35" | 34"-37" |
| Effective top tube | 546mm | 560mm | 583mm | 605mm |
| Nominal head tube angle | 71° | 71.5° | 71.5° | 71.5° |
| Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
| Head tube length | 94mm | 107mm | 149mm | 191mm |
| Nominal seat tube angle | 72.5° | 72.5° | 72.5° | 72.5° |
| Seat tube length | 475mm | 510mm | 540mm | 570mm |
| Bottom bracket drop | 68-72mm | 68-72mm | 68-72mm | 68-72mm |
| Chainstay length | 420-440mm | 420-440mm | 420-440mm | 420-440mm |
| Wheelbase | 1008 - 1028mm | 1015-1035mm | 1039-1059mm | 1062-1082mm |
| Trail | 71mm | 68mm | 68mm | 68mm |
| Fork offset | 47mm | 47mm | 47mm | 47mm |
| Rigid fork axle to crown length | 420mm | 420mm | 420mm | 420mm |
| Stack | 540mm | 555mm | 595mm | 635mm |
| Reach | 375mm | 385mm | 395mm | 405mm |
| Standover | 735mm | 764mm | 796mm | 830mm |
Note: Images may not show actual build kit content. Pricing and specifications subject to change without notice. Comparable components may be substituted when necessary to fulfill bike shipments.
